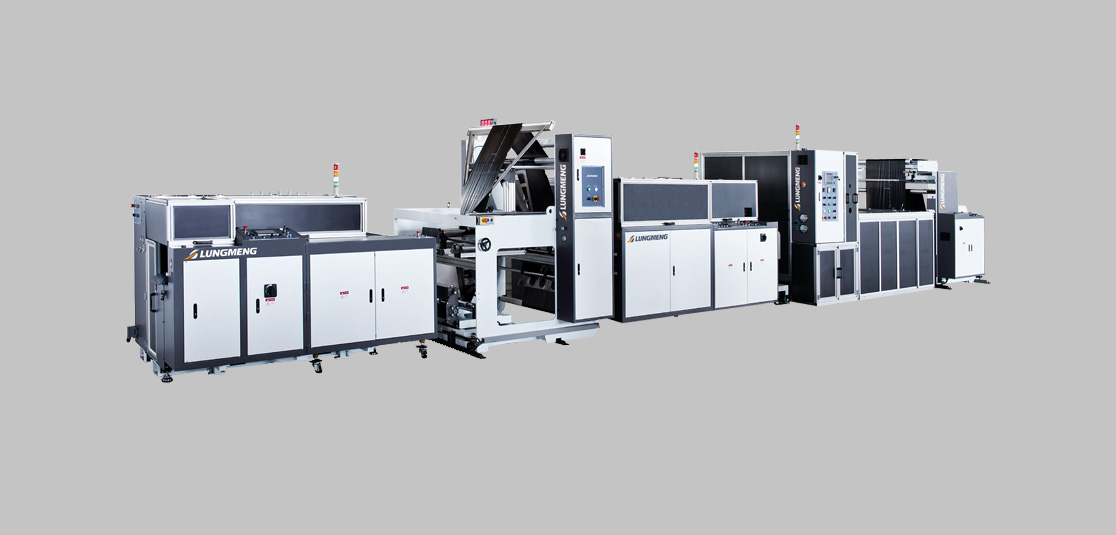

Interleaved Draw Tape Bag on Roll Converting System

TA-IPD-XL-Q
Interleaved Draw Tape Bag on Roll Converting System

Особенности

  • High speed integrated servo-driven system, suitable for draw-tape and conventional garbage bag on roll.
  • Auto draw-tape feeding system, double unwinding system for quick draw tape roll changing.
  • Double sealing device duplicates production capacity for small bag.
  • Compact rotary interleaved winder, 2 in 1 system, available for perforation bag on roll and interleaved bag on roll.
  • User friendly PLC touch screen control system.
  • Optional label dispenser.
  • Reliable versatile system to produce wide variety of bag on roll including star sealed bag, wave type bag, table cover and many more by changing modular system.


Приложения

Model available

Model Single Thickness (mm) Draw Tape Bag Width (mm) Draw Tape Bag Length (mm) Regular Bag Width (mm) Regular Bag Length (mm) Machine Speed (m/min) Max. Output (pcs/min) Max. Dia. of Product (mm) Draw-tape Width (mm) Draw-tape Thickness (mm) Machine Size (mm) (L*W*H) Power Required (kw) ADD
TA-1000-IPD-XL-Q HDPE:0.008~0.025 / LDPE 0.020~0.100 400 ~ 1000 450 ~ 900 100 ~ 900 140 ~ 2000 20 ~ 160 320 Ø 180 * W 275 100 0.020 ~ 0.025 15117 * 2475 * 2255 62
TA-1250-IPD-XL-Q HDPE:0.008~0.025 / LDPE 0.020~0.100 400 ~ 1000 450 ~ 1200 100 ~ 1200 140 ~ 2000 20 ~ 160 320 Ø 180 * W 275 100 0.020 ~ 0.025 15117 * 2750 * 2255 62
