Bag making (Converting)

Our bag making machines offer speed,
precision, and flexibility for various bag types — from food to fashion.

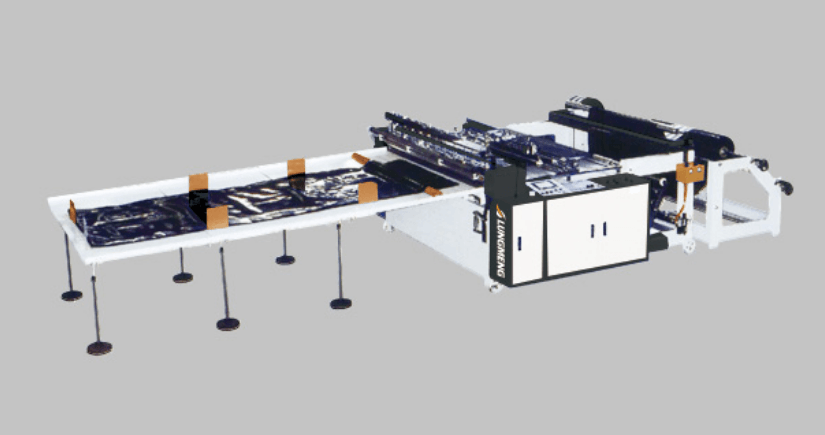

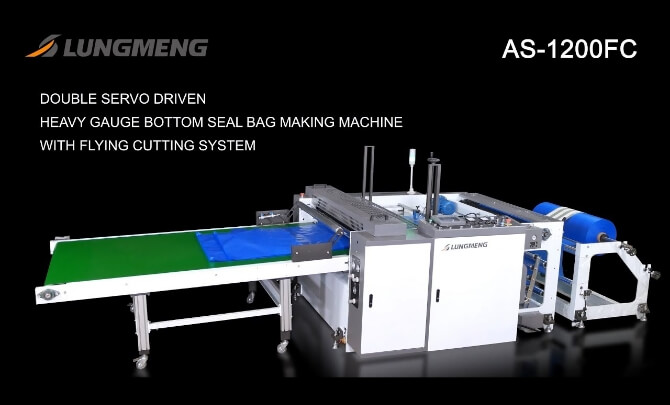

Double Servo-Driven Heavy-Gauge Bottom Seal Bag Making Machine

The durable saw-like cutting and strong tensionless sealing system are perfect for huge and thick bags. The simple mechanical construction makes the machine easy to operate and maintain. The double servo driven system allows precise cutting & sealing. The advanced microprocessor motion control facilitates quick length change.

FEATURES

Durable saw-like cutting and strong tensionless sealing system is very suitable for huge and thick bag.
Simple mechanical construction makes the machine easy to operate and maintenance.
Double servo driven system for precise cutting & sealing.
Advanced microprocessor motion control for quick length change.

Double Servo-Driven Heavy-Gauge Bottom Seal Bag Making Machine

SPECIFICATIONS

Model	AS-900C	AS-1050C	AS-1200C	AS-1650C	AS-2100C
MAX-Cutting Size (W x L)(mm)	850 x 1750	1000 x 3050	1150 x 3050	1570 x 3050	2050 x 3550
Thickness of Film (mm)	0.02 x 2 0.2 x 4	0.02 x 2 0.2 x 4	0.02 x 2 0.2 x 4	0.02 x 2 0.2 x 4	0.02 x 2 0.2 x 4
Production Cycles	10 - 70	10 - 70	10 - 70	10 - 60	5 - 60
Power Required (KW)	6	6.9	7.5	10.2	13.5
	+ Add to Inquiry	+ Add to Inquiry	+ Add to Inquiry	+ Add to Inquiry	+ Add to Inquiry

* Specification subject to change without notice.
