                                Fully Automatic Servo-Driven T-Shirt Bag Making Machine



    6.

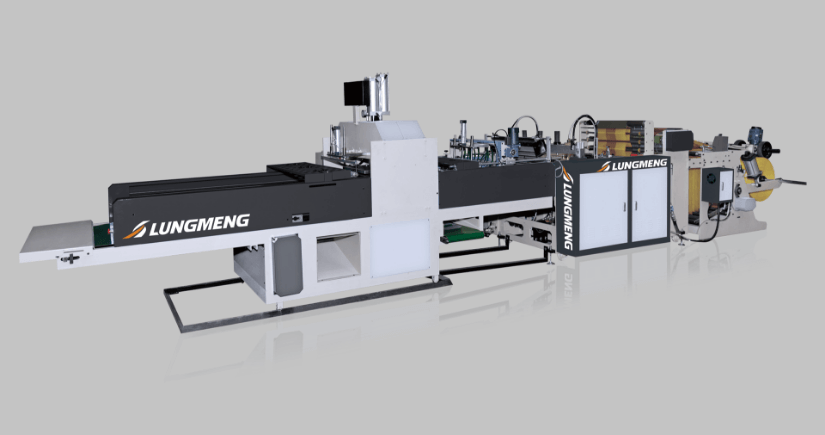

                            Fully Automatic Servo-Driven T-Shirt Bag Making Machine

                            TPA-GP Series













	The fast and accurate servo-driven feeding system with a tension unit & EPC device brings high speed production and low maintenance work. It is easy to operate with the intuitive user interface and pneumatic loading unit.


FEATURES




  •
		Fast and accurate servo-driven feeding system with tension unit & E.P.C. device for high speed production and low maintenance.

    •

  •
		Advanced microprocessor movement control for quick length change and printed bags registration.

    •

  •
		Specially designed structure of sealing and cutting device allows operator to turn over for easy cleaning and maintenance.

    •

  •
		Friendly intuitive user interface.

    •

  •
		Pneumatic loading unit for easy mother roll changes.

    •








Fully Automatic Servo-Driven T-Shirt Bag Making Machine TPA-GP Series












SPECIFICATIONS













				Model


				TPA-500GP


				TPA-800GP


				TPA-1000GP






				Lane


				1


				2


				2






				Max. Bag Size Width (mm)


				445


				330


				420






				Bag Size Length (mm)


				350 - 700


				350 - 700


				350 - 700






				Thickness of Film (mm)


				HDPE: 0.008-0.025 / LDPE: 0.020-0.060


				HDPE: 0.008-0.025 / LDPE: 0.020-0.060


				HDPE: 0.008-0.025 / LDPE: 0.020-0.060






				Max. Production Cycles


				275


				300


				250






				Power Required (KW)


				11


				21


				24







+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry







>




* Specification subject to change without notice.





























                                        PLAY
                                        PLAY



                                    VIEW A VIDEO














                                        PLAY
                                        PLAY



                                    VIEW A VIDEO


















Get Your Personal Consultation


Searching for the right solution?
We are happy to consult with you which solutions best fit your needs.



				Contact Us












Discover more

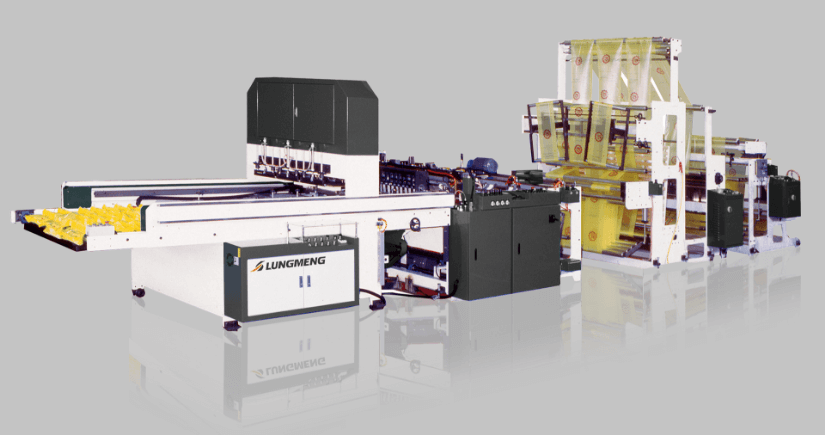

Fully Automatic Servo-Driven Triple-Lane T-Shirt Bag Making Machine with Hot Slit Seal & Post Gusset Unit TPA-SHP2 Series


                                    Fully Automatic Servo-Driven Triple-Lane T-Shirt Bag Making Machine with Hot Slit Seal & Post Gusset Unit - TPA-SHP2 Series


	The fast and accurate servo-driven feeding system with a tension unit & EPC device brings high speed production and low maintenance work. It is easy to operate with the intuitive user interface and pneumatic loading unit. Equipped with the advanced micro-processor movement control for quick length change. It is easy to operate with the intuitive user interface and pneumatic loading unit. Minimum maintenance is required through the specially designed structure of sealing and cutting device.



                                        Read More









Fully Automatic Multi-Function Shopping Bag Making Machine


                                    Fully Automatic Multi-Function Shopping Bag Making Machine


	This line is designed for various types of shopping bags, such as soft loop, die cut handle, poly draw & patch handle bags. The soft loop feeding system is driven by pneumatic control to allow precise and quick cutting and welding. The die cut punching system is equipped with high speed steel knife designed for durability and easy maintenance. The poly draw inserting device automatically feeds strings into the top folding & sealing area, and the patch handle system attaches PE film to reinforce the bag handle. The convenient auto stacker collects finished bags in an orderly fashion.



                                        Read More

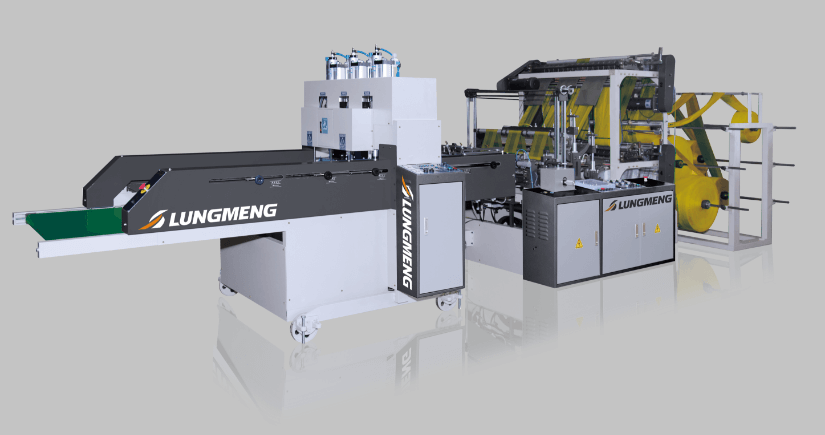

Multi-Lane Bottom Seal Bag Making Machine GS-P Series


                                    Multi-Lane Bottom Seal Bag Making Machine - GS-P Series


	This line is perfect for bottom seal & T-shirt bags. Constructed with simplicity, this machine requires minimum maintenance. Auto-stop is activated when no film is sensed. The photocell sensor on the infeed system ensures sealing quality. It’s easy to convert the brass sealing blade for single or double line production. The convenient auto stacker collects finished bags in an orderly fashion.



                                        Read More
