Bag making (Converting)

Our bag making machines offer speed,
precision, and flexibility for various bag types — from food to fashion.

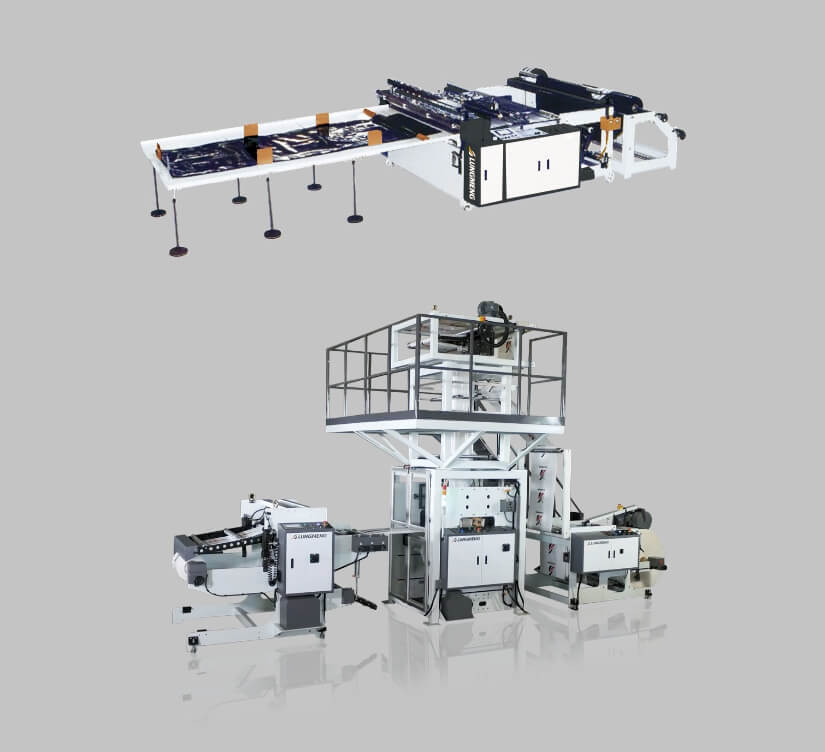

Heavy Duty Bag Making Machine with Embossing in Line System

The bag making machine can be in in-line or off-line with the embossing unit. There’s a knurling effect on the surface of material bags for anti-sliding, and the embossing pattern can be modified and selected according to the customer's requirements. The max. thickness of sealing, cutting and knurling can be up to 800 micron in the system.

FEATURES

The bag making machine can be in in-line or off-line with the embossing unit.
Knurling effect on surface of material bags for anti-sliding.
The embossing pattern can be modified and chosen according to customer's requirements.
Sealing, Cutting, Knurling max. thickness can be up to 800 micron in the system.

Heavy Duty Bag Making Machine with Embossing in Line System

SPECIFICATIONS

Model	EERR-800 (rotary+embossing)	AS-900C	EERR-1000 (rotary+embossing)	AS-1050C
Machine Speed (M/min)	10 - 40	5 - 20	10 - 40	5 - 20
Finished Product Width (mm)	450 - 750	450 - 750	450 - 950	450 - 950
Thickness (mm)	0.020 x 2 0.200 x 4	0.020 x 2 0.200 x 4	0.020 x 2 0.200 x 4	0.020 x 2 0.200 x 4
Gusset Depth (mm)	25 - 125	25 - 125	25 - 125	25 - 125
Rotate Degree	0 - 80°	0 - 80°	0 - 80°	0 - 80°
Cutting Length (mm)	-	1780	-	3000
Max. Production Cycles	-	60	-	60
	+ Add to Inquiry	+ Add to Inquiry	+ Add to Inquiry	+ Add to Inquiry

* Specification subject to change without notice.
