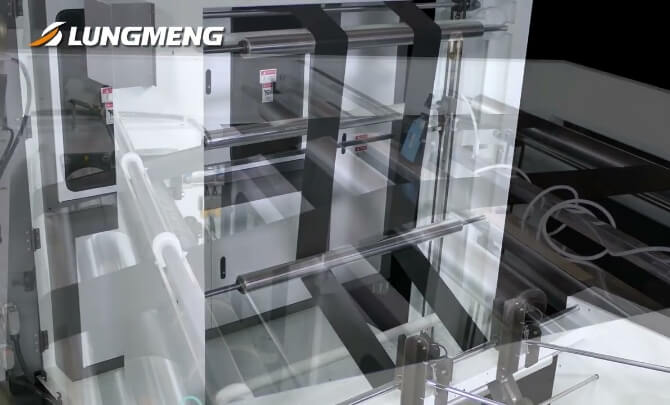

Servo-Driven Double-Track Rotary seal Garbage Bag Making Machine

The newly developed concept of continuous turn around theorem and special design of free-loop film tensioning device allows sealing tightness, supporting even the thinnest gauge material. The machine is applicable for HDPE, recycled materials with the max. speed reaching 150 m/min. The fully automatic high speed for spindle roll winder is synchronized with the highly efficient auto labeling device. The surface winder is designed for one single flat and 2 star seal rolls of different roll diameters. The panel control micro-processor provides bag parameter settings and diagnostic information without production being stopped.

FEATURES

Advanced Design - New developed concept of continuous turn around theorem and special design of free-loop film tensioning device allow for sealing tightness, supporting even the thinnest gauge material.
Single and Double - Track Production servo driven system supports high-speed turn around work, ensures film running even, makes operation & maintenance easy.
High Productivity - Max. Speed 150 m / min., material suitable for HDPE, recycled.
Synchronized Rewinding & Labeling - The fully automatic high speed four spindle roll winder includes the highly efficient auto labeling device to synchronize the products' surface to be posted by the label.
Surface Unwinder - Surface winder is designed for one single flat and 2 star seal rolls of different roll diameter.
Operator - Friendly Controller - User interface panel control micro-processor provides bag parameter setting and diagnostic information without stopping production.

Servo-Driven Double-Track Rotary seal Garbage Bag Making Machine

SPECIFICATIONS

Model	TA-800-D1	TA-1000-D1
Thickness of Film (mm)	HDPE: 0.008 - 0.015	HDPE: 0.008 - 0.015
Mother Film Width (mm)	700 x 1 300 x 2	950 x 1 300 x 2
Flat Bag Bag Length (mm)	380 - 2000	380 - 2000
Mother Film Dia. (mm)	Ø 950	Ø 950
Finished Production (mm)	300 x 2 700 x 1	300 x 2 700 x 1
Finished Production Roll Dia. (mm)	Ø 130	Ø 130
Max. Production Speed (m / min)	150	100
	+ Add to Inquiry	+ Add to Inquiry

* Specification subject to change without notice.
