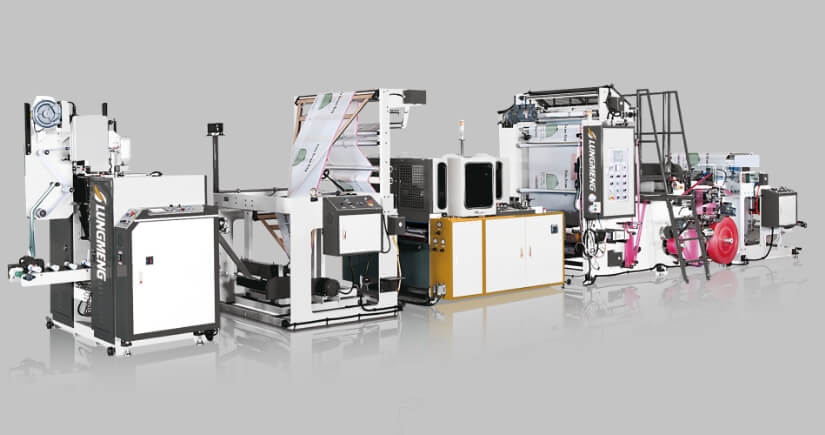

Shuttle Track Draw Tape Bag On Roll Converting System

This line is equipped with high speed integrated servo-driven system and is suitable for draw-tape and conventional garbage bags on roll. The hot air sealing system for horizontal lip sealing allows consistent and stable production. The draw tape feeding system allows auto inserting of the tape, and the double unwinding device facilitates auto exchange of the draw tape. This is a servo driven (4 axes) shuttle bag making machine for complete synchronization of in-feed / out-feed, seal and shuttle motion. The in-line servo driven shuttle track sealing & perforating unit creates excellent sealing & perforating effects. The Labeling machine. is an optional choice.

FEATURES

High speed integrated servo-driven system, suitable for poly draw, and conventional garbage bags on roll.
Hot air sealing system for horizontal lip sealing features stable sealing.
Draw tape feeding system for auto inserting the tape, double unwind device for auto exchange draw tape.
Equipped with PLC touch screen operator friendly control system.
Servo driven (4 axis) shuttle bag making machine for complete synchronization of in-feed/out-feed , seal and shuttle motion.
In-line servo driven shuttle track sealing & perforating unit owns precisely dwell tine control for excellent effect of sealing & perforating.
Optional: Labeling machine.

Shuttle Track Draw Tape Bag On Roll Converting System

SPECIFICATIONS

Model	TA-1000-PDR-S1	TA-1250-PDR-S1
Single Thickness (mm)	HDPE: 0.008-0.040 / LDPE: 0.020-0.060	HDPE: 0.008-0.040 / LDPE: 0.020-0.060
Draw Tape Bag Width (mm)	400 - 1000	400 - 1000
Draw Tape Bag Length (mm)	400 - 900	400 - 1200
Flat Bag Width (mm)	100 - 900	100 - 1150
Flat Bag Length (mm)	150 - 2000	150 - 2000
Machine Speed (m / min)	Max. 130	Max. 130
Max. Output (pcs / min)	160	160
Max. Dia. Of Product (mm)	Ø 120 x W 100 - 300	Ø 120 x W 200 - 400
Draw Tape Width (mm)	100	100
Draw Tape Thickness (mm)	0.020 - 0.025	0.020 - 0.025
	+ Add to Inquiry	+ Add to Inquiry

* Specification subject to change without notice.
