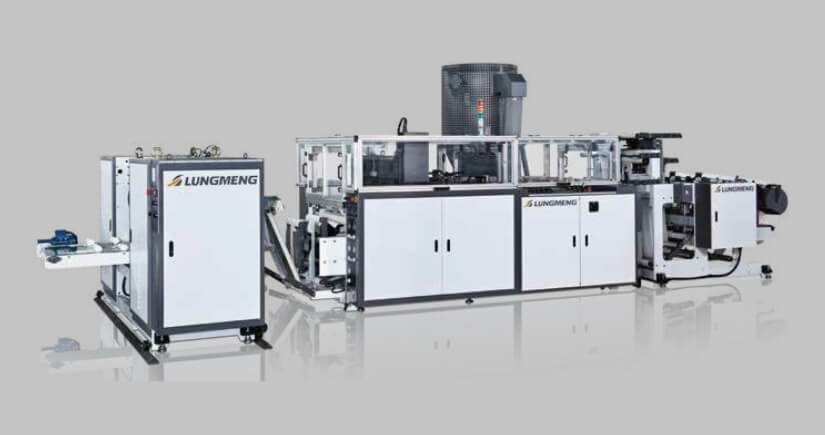

Shuttle Track Two Lane Star Seal Bag On Roll Converting System (Core & Coreless)

This line runs with a servo driven shuttle track sealing and perforation system and is able to produce various bags on roll. Equipped with the user friendly PLC touchscreen control interface, there’s optional equipment, including the folding device.

FEATURES

Servo driven shuttle track sealing and perforation system.
Reliable versatile system to produce a wide variety of bag on roll products.
Equipped with operator friendly PLC touchscreen control interface.
Option: Coreless Unit.

Shuttle Track Two Lane Star Seal Bag On Roll Converting System (Core & Coreless)

SPECIFICATIONS

Model	TA-S-750XL-2Q	TA-S-1000XL-2Q
Thickness of Film (mm) (Coreless)	HDPE: 0.008 - 0.015	HDPE: 0.008 - 0.015
Thickness of Film (mm) (Core)	HDPE: 0.008 - 0.015 / LDPE: 0.020 - 0.060	HDPE: 0.008 - 0.015 / LDPE: 0.020 - 0.060
Mother Film Width (mm)	100 - 300 x 2 700 x 1	100 - 405 x 2 890 x 1
Flat Bag Bag Length (mm)	150 - 2000	150 - 2000
Mother Film Dia. (mm)	Ø 1000	Ø 1000
Finished Production (mm) (Core )	W 100 - 300 x 2 W 335 - 700 x 1	W 100 - 405 x 2 W 405 - 890 x 1
Finished Production Roll Dia. (mm) (Core )	Ø 210	Ø 210
Finished Production (mm) (Coreless)	W 100 - 300 x 2 W 330 - 700 x 1	W 100 - 330 x 2 W 330 - 700 x 1
Finished Production Roll Dia. (mm) (Coreless )	Ø 130	Ø 130
Max. Production Speed (m / min)	130	130
	+ Add to Inquiry	+ Add to Inquiry

* Specification subject to change without notice.
