Bag on roll (Converting)

Our bag making machines offer speed,
precision, and flexibility for various bag types — from food to fashion.

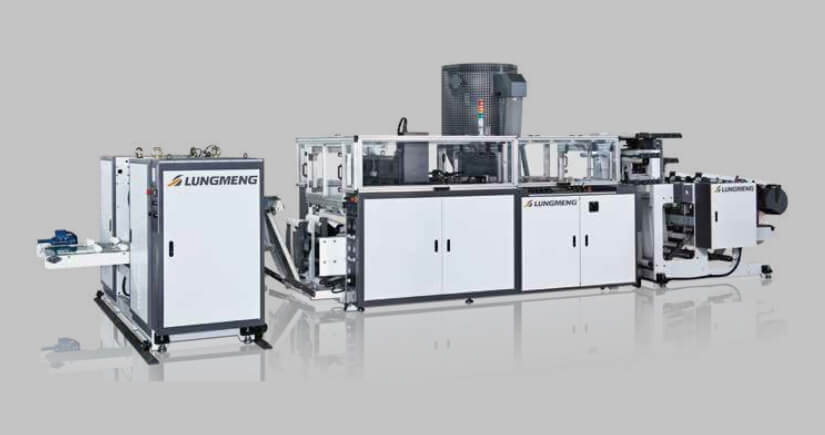

Shuttle Track Two Lane Star Seal Bag On Roll Converting System
Wave Top

The Shuttle Track Two Lane Star Seal System delivers servo-driven precision for sealing and perforation. Designed for versatility, it handles star-seal bags, s-cut rolls, and more with efficiency. With touchscreen control, flexible add-on units, it adapts to every production demand.

FEATURES

Servo driven shuttle track sealing and perforation system.
Reliable versatile system to produce a wide variety of bag on roll products, s-cut bag on roll.
Equipped with operator friendly PLC touchscreen control interface.
Option: folding device, labeling machine.

Shuttle Track Two Lane Star Seal Bag On Roll Converting System Wave Top

SPECIFICATIONS

Model	TA-S-750XL-2Q
Thickness of Film (mm)	HDPE: 0.008-0.015
Mother Film Width (mm)	100 - 300 x 2
Flat Bag Bag Length (mm)	150 - 2000
Mother Film Dia. (mm)	Ø 1000
Finished Production (mm)	W 100 - 300 x 2
Finished Production Roll Dia. (mm)	Ø 130
Max. Production Speed (m / min)	130
	+ Add to Inquiry

* Specification subject to change without notice.
