Bag on roll (Converting)

Our bag making machines offer speed,
precision, and flexibility for various bag types — from food to fashion.

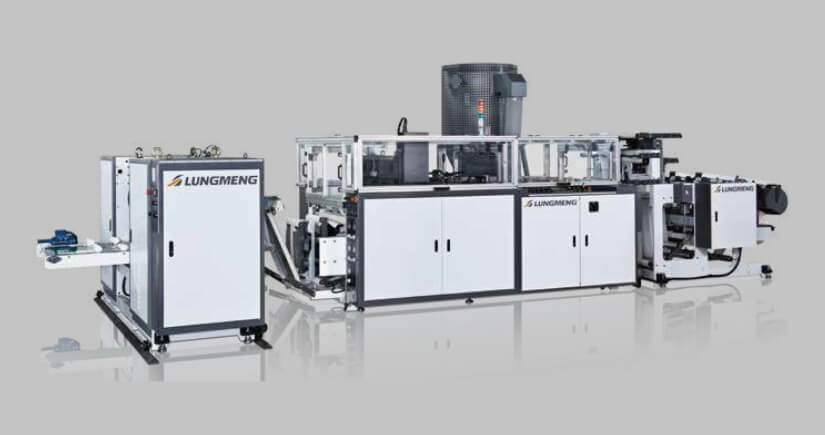

Shuttle Track Two Lane Star Seal Bag On Roll Converting System

This line runs with a servo driven shuttle track sealing and perforation system and is able to produce various bags on roll. Equipped with the user friendly PLC touchscreen control interface, there’s optional equipment, including the labeling machine.

FEATURES

Servo driven shuttle track sealing and perforation system.
Reliable versatile system to produce a wide variety of bag on roll products.
Equipped with operator friendly PLC touchscreen control interface.
Option: Labeling machine.

Shuttle Track Two Lane Star Seal Bag On Roll Converting System

SPECIFICATIONS

Model	TA-S-750XL-2Q
Thickness of Film (mm)	HDPE: 0.008 - 0.015
Mother Film Width (mm)	100 - 300 x 2
Flat Bag Bag Length (mm)	150 - 2000
Mother Film Dia. (mm)	Ø 1000
Finished Production (mm)	W 100 - 300 x 2
Finished Production Roll Dia. (mm)	Ø 130
Max. Production Speed (m / min)	130
	+ Add to Inquiry

* Specification subject to change without notice.
