Bag on roll (Converting)

Our bag making machines offer speed,
precision, and flexibility for various bag types — from food to fashion.

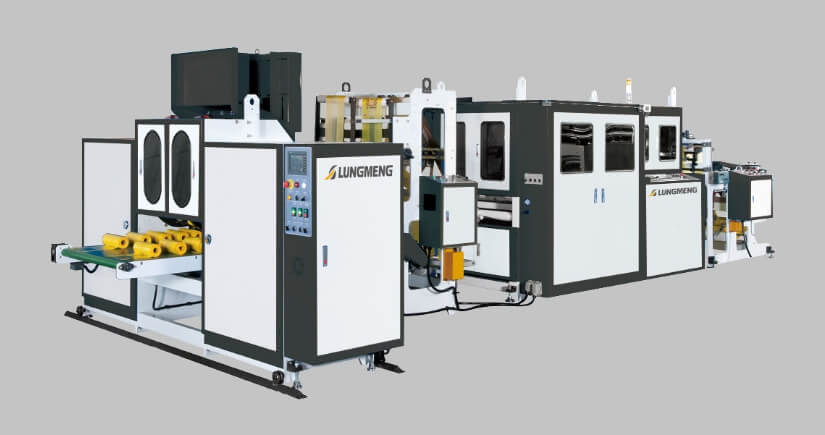

Shuttle Track Two Lane T-Shirt Bag & Star Seal Bag On Roll Converting System (Core & Coreless)

This line runs with a servo driven shuttle track sealing and perforation system and is able to produce various bags on roll, produce bags, table covers, conventional bags and many more. With the automatic core and coreless tension controlled rewinding system, It’s available with paper core and coreless.

FEATURES

Servo driven shuttle track sealing and perforation system.
Reliable versatile system to produce a wide variety of bag on roll products, produce bag, table cover, conventional bag and many more.
Equipped with operator friendly PLC touchscreen control interface.
Automatic core and coreless tension controlled rewinding system.
Available with paper core and coreless.

Shuttle Track Two Lane T-Shirt Bag & Star Seal Bag On Roll Converting System (Core & Coreless)

SPECIFICATIONS

Model	TA-S-750V	TA-S-1000V
Thickness of Film (mm)	HDPE: 0.008-0.025 / LDPE: 0.020-0.100	HDPE: 0.008-0.025 / LDPE: 0.020-0.100
Mother Film Width (mm)	700	950
Flat Bag Bag Length (mm)	450 - 2000	450 - 2000
Mother Film Dia. (mm)	Ø 1000	Ø 1000
Finished Production (mm) (Core)	220 - 700	500 - 950
Finished Production Roll Dia. (mm) (Core)	Ø 200	Ø 200
Finished Production (mm) (Coreless)	HDPE: 220 - 700 / LDPE: 220 - 400	-
Finished Production Roll Dia. (mm) (Coreless )	Ø 130	-
Max. Production Speed (m / min)	75	75
	+ Add to Inquiry	+ Add to Inquiry

* Specification subject to change without notice.
