LUNG MENG MACHINERY CO., LTD.


































Bag making (Converting)


Our bag making machines offer speed,

precision, and flexibility for various bag types — from food to fashion.














  1.

                                Home



    2.

  2.
                            Products

    3.

  3.

                                Bag making (Converting)



    4.

  4.

                                Universal Bag



    5.

  5.

                                Universal Bag Making Machine



    6.

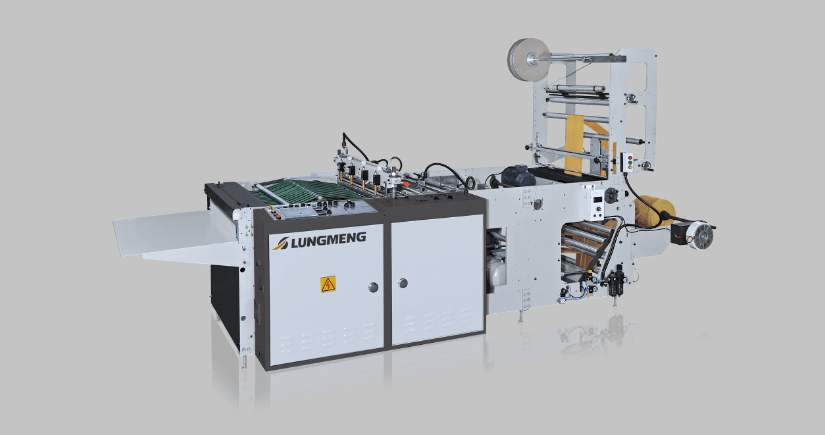

                            Universal Bag Making Machine

                            ASTP Series













	This line is designed for side seal, bottom seal and double bottom seal bags, and the changeover takes less than 1/2 hour. With the servo driven control system , the high speed production output reaches 200bags/min. This indicator for anomalies allows easy troubleshooting and protects the machine. The advanced microprocessor motion control allows quick length change and photo registrations.


FEATURES




  •
		Designed for side seal, bottom seal and double bottom seal bags, which take less than 1/2 hour for the changeover.

    •

  •
		Servo driven control system, high speed production output at 200bags/min.

    •

  •
		Abnormal indicator to protect the machine and easy troubleshooting.

    •

  •
		Advanced microprocessor motion control for quick length change and photo registrations.

    •








Universal Bag Making Machine ASTP Series












SPECIFICATIONS













				Model


				ASTP-760P-SB


				ASTP-1000P-SB






				Bag Type


				Bottom & Side Seal


				Bottom & Side Seal






				Min Bag (WxL) (mm)


				120 x 120


				120 x 120






				Max Bag (WxL) (mm)


				650 x 760


				650 x 1000






				Thickness of Film (mm)


				0.02-0.1

0.02-0.06


				0.02-0.1

0.02-0.06






				Max Production (Cycle / min)


				160


				140







+ Add to Inquiry

+ Add to Inquiry







>




* Specification subject to change without notice.
