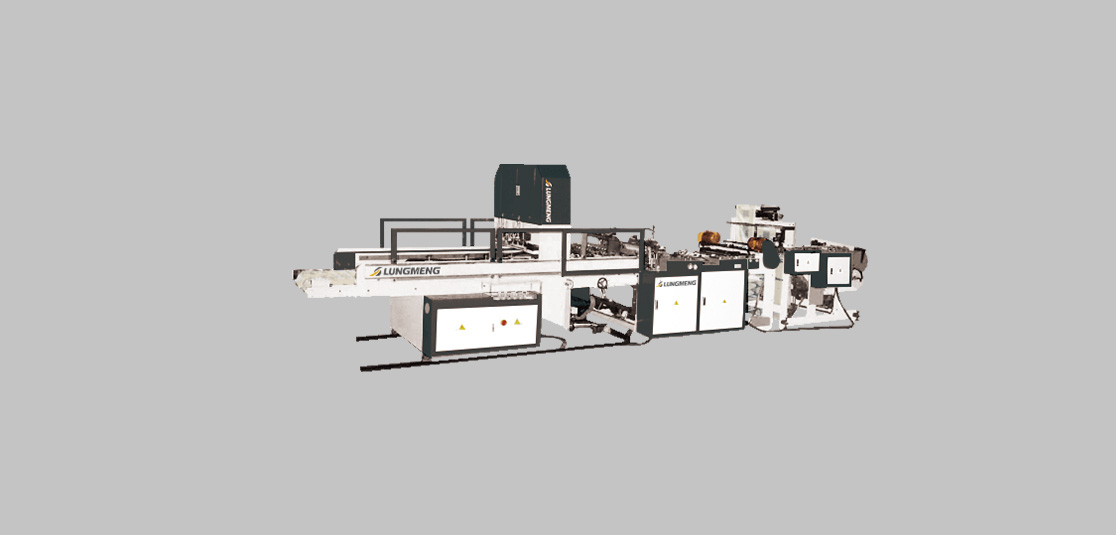

Fully Automatic Servo-Driven T-Shirt Bag Making Machine
This line functions with easy change between T-Shirt Bags and Calendar Bags. (Options). The fast and accurate servo-driven feeding system with a tension unit & EPC device brings high speed production and low maintenance work. It is easy to operate with the intuitive user interface and pneumatic loading unit.

Features

  • Unique design with easy change between T-Shirt Bag and Calendar Bag (Option)
  • Fast and accurate servo-driven feeding system with tension unit & E.P.C.device for high speed production and low maintenance.
  • Advanced microprocessor movement control for quick length change and printed bags registration.
  • Specially designed structure of sealing and cutting device allows operator to turn over for easy cleaning and maintenance.
  • Friendly intuitive user interface.
  • Pneumatic loading unit for easy mother roll changes.

Applications

Model available

Model Lane Max. Bag Size Width X Length Thickness Of Film (mm) Max. Production Cycles/Min Heater Power Required Machine Size L x W x H (M) ADD
TPA-500GP 1 445 x 700 mm 0.008 - 0.035 275 3.4 KW 11 KW 7.7 x 1.4 x 2
TPA800GP 2 330 x 700 mm 0.008 - 0.035 275 7.5 KW 21 KW 7.8 x 1.7 x 2
TPA1000GP 2 420 x 700 mm 0.008 - 0.035 275 7.5 KW 24 KW 7.8 x 1.9 x 2
