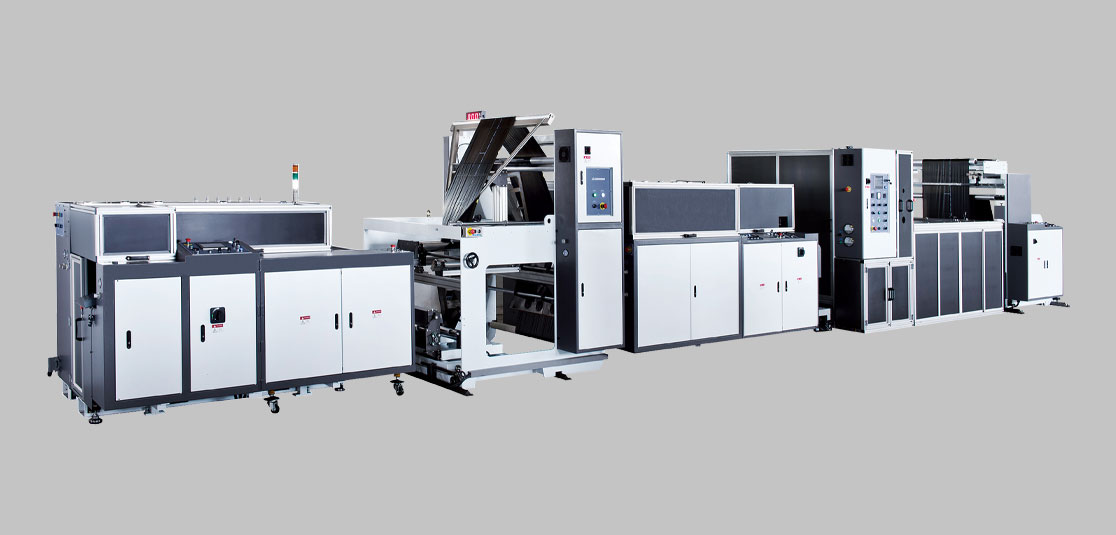

Interleaved Draw Tape Bag on Roll Converting System
This line is equipped with high speed integrated servo-driven system and is suitable for draw-tape and conventional garbage bag on roll. The auto draw-tape feeding system and double unwinding system for quick draw tape roll changing. The double sealing device duplicates the production capacity for small bags, and the compact rotary interleaved winder, 2 in 1, is available for perforated bags on roll and interleaved bags on roll. With the user friendly PLC touch screen control system and optional label dispenser, it’s an easy task to produce a wide variety of bags on roll, including star sealed bags, wave top bags, table covers and many more by changing the modular system.

Особенности

  • High speed integrated servo-driven system , suitable for poly draw , and conventional garbage bags on roll.
  • Hot air sealing system for horizontal lip sealing features stable sealing.
  • Draw tape feeding system for auto inserting the tape , double unwind device for auto exchange draw tape.
  • Equipped with PLC touch screen operator friendly control system.
  • Servo driven (4 axis) shuttle bag making machine for complets synchronization of in-feed/out-feed , seal and shuttle motion.
  • Compact rotary overlap bag winder.
  • Optional label dispenser.


Приложения

Model available

Model Single Thickness (mm) Draw tape Bag Width (mm) Draw tape Bag Length (mm) Regular bag Width (mm) Regular bag Length (mm) Machine Speed (M/min) Max. Output (pcs/min) Max. Dia. of Product (mm) Draw-Tape Width (mm) Draw-Tape Thickness (mm) Machine size (mm) (L*W*H) Power Required (kw) ADD
TA-1000-IPD-XL-Q HDPE: 0.008~0.025 / LDPE 0.020~0.100 400 ~1000 450 ~ 900 100 ~ 900 140 ~ 2000 20 ~160 320 Ø 180 * W 275 100 0.020~0.025 15117 * 2475 * 2255 62
TA-1250-IPD-XL-Q HDPE: 0.008~0.025 / LDPE 0.020~0.100 400 ~ 1000 450 ~ 1200 100 ~ 1200 140 ~ 2000 20 ~160 320 Ø 180 * W 275 100 0.020~0.025 15117 * 2750* 2255 62
