LUNG MENG MACHINERY CO., LTD.


































Printing


With inline flexographic printing,

Lung Meng enhances packaging value through seamless and consistent brand expression.














  1.

                                Home



    2.

  2.
                            Products

    3.

  3.

                                Printing



    4.

  4.

                                Central Impress



    5.

  5.

                                High Speed C.I. Flexographic Printing Press



    6.

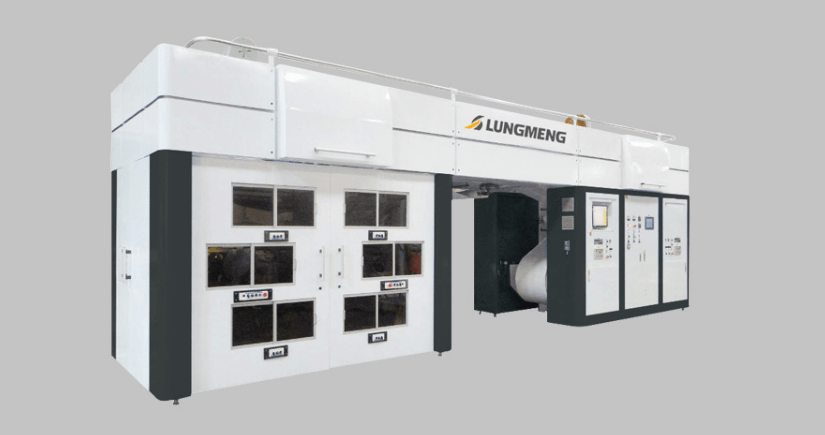

                            High Speed C.I. Flexographic Printing Press















	The High Speed C.I. Flexographic Printing Press delivers top-tier performance. Built around a precision-engineered central impression drum, it ensures “zero” tolerance in color accuracy. The quick-change sleeve system and enclosed doctor blade chamber streamline operation and maintenance. An integrated high-resolution video inspection system enhances setup efficiency, and the electronic EPC system guarantees stable edge alignment throughout production.


FEATURES




  •
		Max. printing speed 300 M/min.

    •

  •
		Precise central drum impression roller.

    •

  •
		Fully automatic unwinder and rewinders servo-driven, max. Roll dia. 800mm printing sleeve change.

    •

  •
		Equipped with sleeve system and doctor blade chamber system.

    •

  •
		Advanced photo video inspection system with full color LCD monitor for setting.

    •

  •
		Electronic type auto edge position control (EPC) on unwinding unit.

    •








High Speed C.I. Flexographic Printing Press












SPECIFICATIONS












                        Model
                        CI-4060S
                        CI-4080S
                        CI-40100S
                        CI-40120S
                        CI-40160S
                        CI-6060S
                        CI-6080S
                        CI-60100S
                        CI-60120S
                        CI-60160S
                        CI-8060S
                        CI-8080S
                        CI-80100S
                        CI-80120S
                        CI-80160S




                        Max. Printing Width (mm)
                        600
                        800
                        1000
                        1200
                        1600
                        600
                        800
                        1000
                        1200
                        1600
                        600
                        800
                        1000
                        1200
                        1600




                        Printing Length Max. (mm)
                        350-800
                        350-800
                        350-800
                        350-800
                        400-800
                        350-800
                        350-800
                        350-800
                        350-800
                        400-800
                        350-800
                        350-800
                        350-800
                        350-800
                        400-800




                        Printing Speed (m/min)
                        300
                        300
                        300
                        300
                        300
                        300
                        300
                        300
                        300
                        300
                        300
                        300
                        300
                        300
                        300






+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry







>




* Specification subject to change without notice.





























                                        PLAY
                                        PLAY



                                    VIEW A VIDEO














                                        PLAY
                                        PLAY



                                    VIEW A VIDEO


















Applications








Paper (Roll)


Paper (Roll)






Film (Roll)


Film (Roll)




















Get Your Personal Consultation


Searching for the right solution?
We are happy to consult with you which solutions best fit your needs.



				Contact Us












Discover more

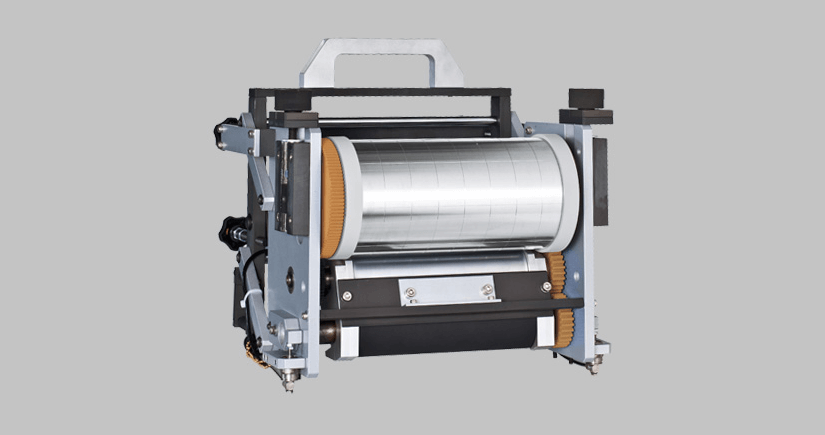

Mini Portable Type Flexographic Printing Machine


                                    Mini Portable Type Flexographic Printing Machine


	This mini portable flexographic printing machine is easy to install and operate and can be attached to a blown film machine, bag making machine or another converting equipment. No electrical connection is required, and the newly developed air ink circulation system ensures quality printing results even with the running speed 85-100 m / min. It can be combined with another printer for 2-color effects.



                                        Read More

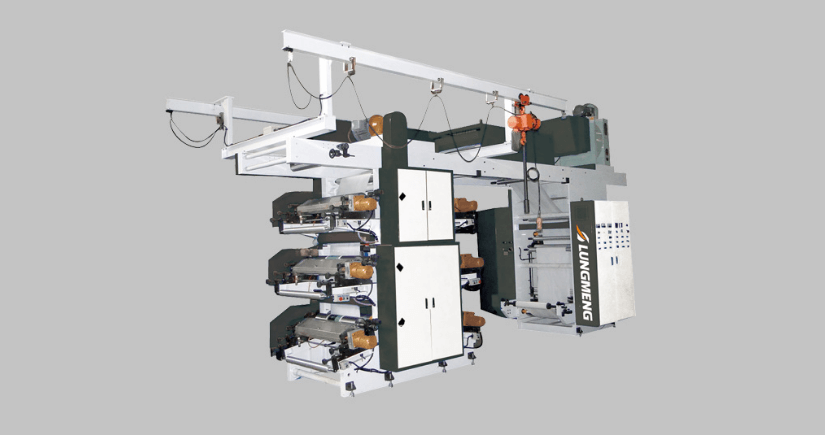

Stacking Type Flexographic Printing Machine


                                    Stacking Type Flexographic Printing Machine


	This printing machine is designed to handle PE, PP, paper, and other similar flexible materials with ease. Equipped with a fully automatic tension control system on both the unwinder and rewinder, it ensures stable material flow and consistent print quality throughout the entire production process. Supports in-line setup. Printing speed 85 m / min.



                                        Read More

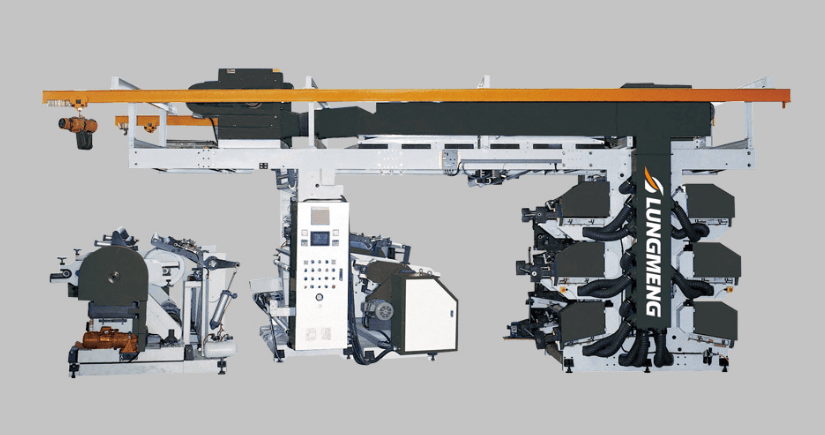

High Speed Six Color Flexographic Printing Machine


                                    High Speed Six Color Flexographic Printing Machine


	Engineered for high-speed production, this press supports a wide range of flexible substrates including PE, PP, and paper. It features advanced web alignment technology, precise color registration, and a Doctor blade inking system to enhance print clarity and consistency. An intelligent drying unit with temperature control boosts efficiency at higher speeds, while front and reverse printing combinations offer versatile design flexibility. Printing speed 120 m / min.




	All the following features are included as standard configuration:





  •
		Electric heating-type hot air dryer

    •

  •
		Ceramic Anilox roller

    •

  •
		Doctor blade system

    •

  •
		360° planetary gear registration system

    •

  •
		Reciprocating ink pump

    •

  •
		Hydraulic plate roller lifting/lowering system

    •

  •
		EPC (Edge Position Control) system

    •

  •
		Fully automatic unwinder and rewinder

    •

  •
		Electronic weighing scale

    •



                                        Read More
