                            High Speed Six Color Flexographic Printing Machine

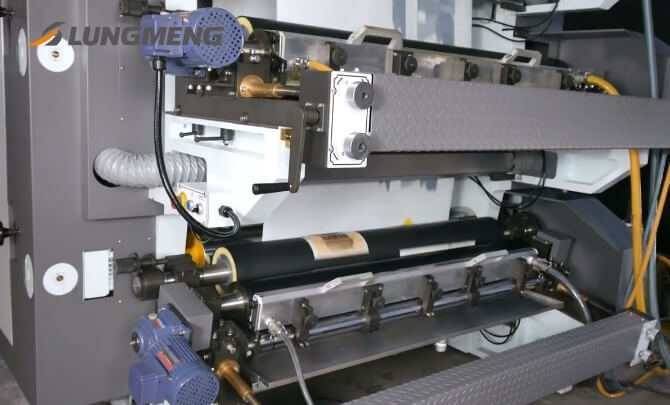

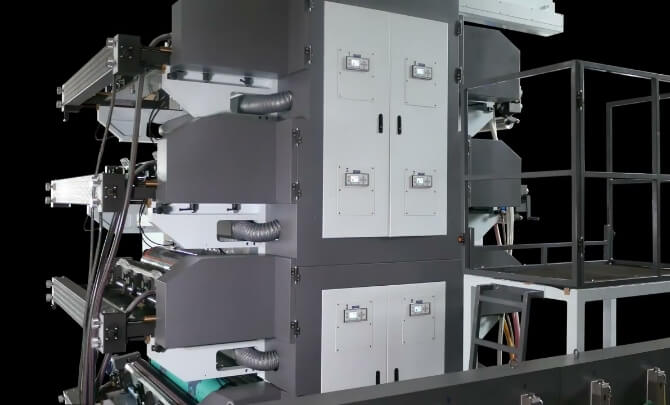

	Engineered for high-speed production, this press supports a wide range of flexible substrates including PE, PP, and paper. It features advanced web alignment technology, precise color registration, and a Doctor blade inking system to enhance print clarity and consistency. An intelligent drying unit with temperature control boosts efficiency at higher speeds, while front and reverse printing combinations offer versatile design flexibility. Printing speed 120 m / min.




	All the following features are included as standard configuration:





  •
		Electric heating-type hot air dryer

    •

  •
		Ceramic Anilox roller

    •

  •
		Doctor blade system

    •

  •
		360° planetary gear registration system

    •

  •
		Reciprocating ink pump

    •

  •
		Hydraulic plate roller lifting/lowering system

    •

  •
		EPC (Edge Position Control) system

    •

  •
		Fully automatic unwinder and rewinder

    •

  •
		Electronic weighing scale

    •


FEATURES




  •
		Available for front and reverse printing.

    •

  •
		For print PE, PP, paper and similar flexible material.

    •

  •
		Fully automatic tension control system on the unwinder and rewinder.

    •

  •
		High efficient drying system with temperature control for increasing speed productive.

    •

  •
		Color registration system and Doctor blade ink system for improving printing quality.

    •

  •
		Edge position controller on the unwinder.

    •








High Speed Six Color Flexographic Printing Machine












SPECIFICATIONS












                        Model
                        FP-1060HA
                        FP-1080HA
                        FP-10100HA
                        FP-10120HA
                        FP-10160HA
                        FP-2060HA
                        FP-2080HA
                        FP-20100HA
                        FP-20120HA
                        FP-20160HA
                        FP-4060HA
                        FP-4080HA
                        FP-40100HA
                        FP-40120HA
                        FP-40160HA
                        FP-6060HA
                        FP-6080HA
                        FP-60100HA
                        FP-60120HA
                        FP-60160HA
                        FP-8060HA
                        FP-8080HA
                        FP-80100HA
                        FP-80120HA
                        FP-80160HA




                        Max. Printing Width (mm)
                        575
                        775
                        975
                        1175
                        1575
                        575
                        775
                        975
                        1175
                        1575
                        575
                        775
                        975
                        1175
                        1575
                        575
                        775
                        975
                        1175
                        1575
                        575
                        775
                        975
                        1175
                        1575




                        Printing Length Max. (mm)
                        280-1000
                        280-1000
                        280-1000
                        280-1000
                        400-1000
                        280-1000
                        280-1000
                        280-1000
                        280-1000
                        400-1000
                        280-1000
                        280-1000
                        280-1000
                        280-1000
                        400-1000
                        280-1000
                        280-1000
                        280-1000
                        280-1000
                        400-1000
                        400-1000
                        400-1000
                        400-1000
                        400-1000
                        400-1000




                        Printing Speed (m/min)
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120
                        120






+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry







>




* Specification subject to change without notice.
