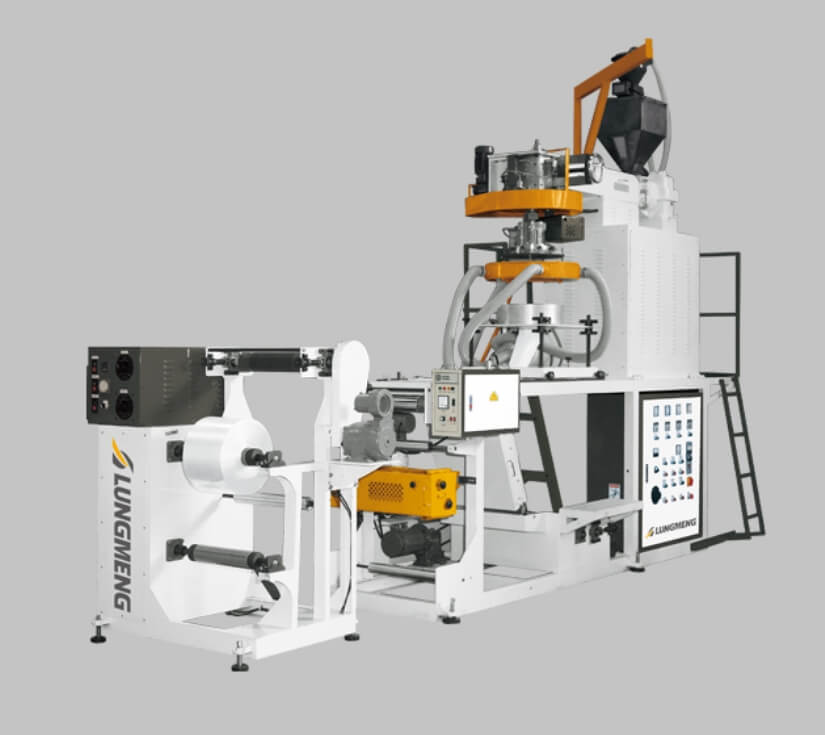

High Speed PP Blown Film Machine

Exceptional film uniformity, smoothness, tension strength and stability are created through the enhanced die & air ring. Advanced screw & barrel design ensures excellent output. The high-torque gear box and superior lubrication system reduce the machines down time.

FEATURES

Special Screw Mixing design results in good homogeneity and high output
Greatly improved die& air ring, providing film uniformity smoothness, tension strength and stability.
Gear box uses high torque and enforced lubrication system to minimize machine down time

SPECIFICATIONS

Model	AP-45	AP-55	AP-65	AP-75
Material of Film	PP	PP	PP	PP
Effective Film Width (mm)	400	600	800	1000
Thickness of Film (mm)	0.02-0.08	0.02-0.08	0.02-0.08	0.02-0.08
Extrusion Output (max.) (kg/hr)	30	50	80	90
Screw Dia.	Ø 45, 28/1	Ø 55, 30/1	Ø 65, 30/1	Ø 75, 30/1
Die Dia. (mm)	150	150-250	200-300	300-550
Main Motor	15HP	25HP	40HP	50HP
Film Wind-Up Roll Dia. (max. mm)	500	500	500	600
Machine Height (M)	4.5	5	6	6
	+ Add to Inquiry	+ Add to Inquiry	+ Add to Inquiry	+ Add to Inquiry

* Specification subject to change without notice.
