Extrusion

From mono to 7-layer extrusion, Lung Meng’s blown film lines deliver high-output,
customized packaging films for diverse applications.

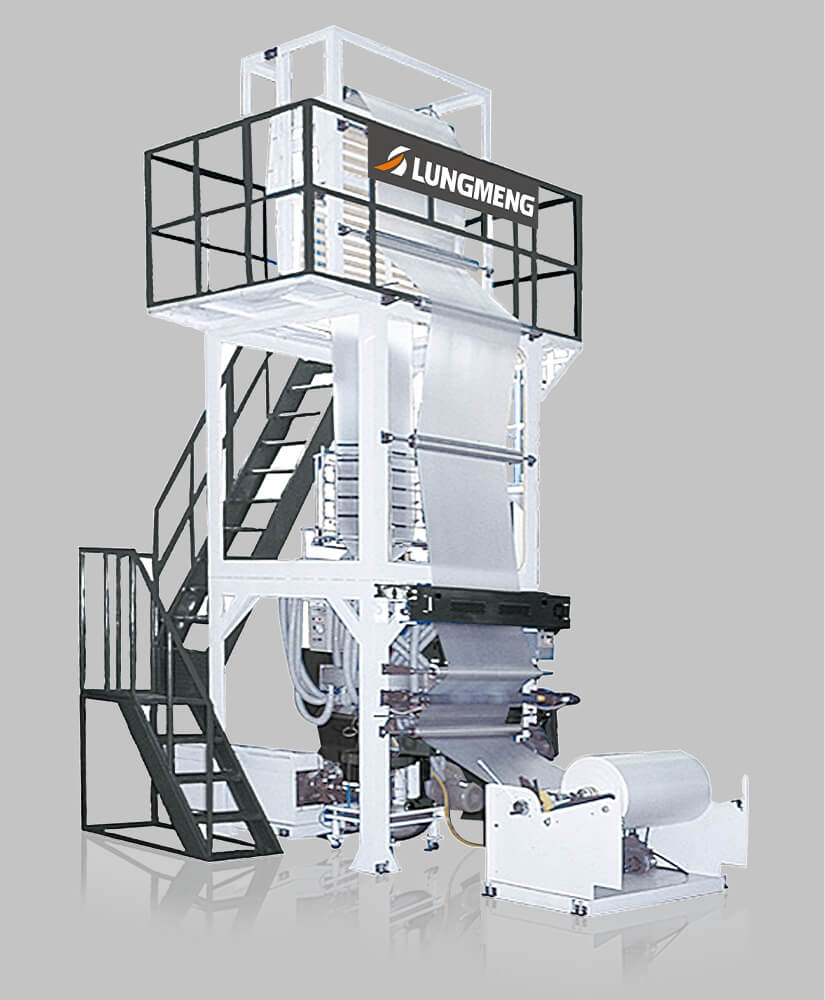

High Speed Stretch Blown Film Machine

This series is the best choice for the production of stretch and cling film with high degrees of transparency and strength. With the back to back winder, separate rolls are produced during the high speed in-line slitting. Its efficiency and stability are highly remarkable.

FEATURES

Designed to produce Stretch and Cling films with high transparency and superior strength
Back to Back Winders for high speed in line slitting to produce separate rolls
High quality mixing in screw and barrel delivers excellent homogeneity and high output
High capacity air ring design for efficient cooling
High torque gear box with enforced lubrication system to minimize machine down time
Equipped with AC Motor with invertor for consistent production volume and reliability

SPECIFICATIONS

Model	AH45SC	AH55SC	AH75SC
Effective Film Width (mm)	700	1000	1700
Extrusion Output (Max. kg / hr)	LDPE: 60	LDPE: 80	LDPE: 200
Screw Dia. (mm)	ø45	ø55	ø75
Pinch Roller Width (mm)	850	1250	180
	+ Add to Inquiry	+ Add to Inquiry	+ Add to Inquiry

* Specification subject to change without notice.

Applications

Cling Film

Stretch Film
