Extrusion

From mono to 7-layer extrusion, Lung Meng’s blown film lines deliver high-output,
customized packaging films for diverse applications.

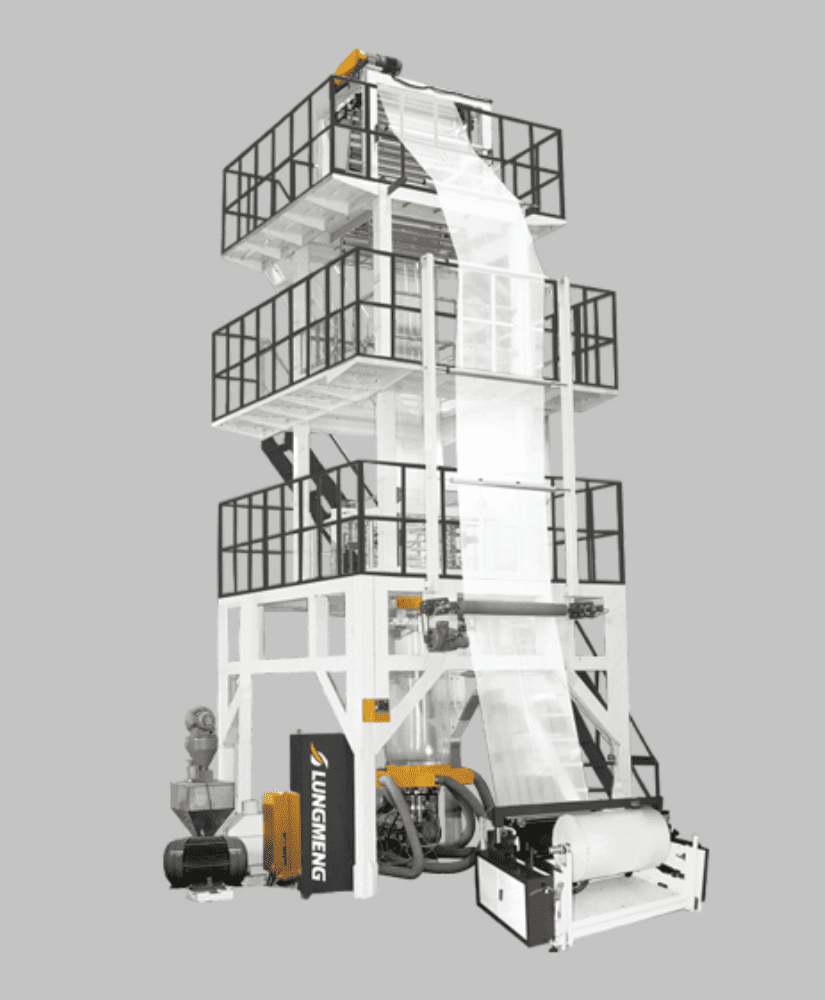

Blown Film Machine With Oscillating Haul
Off Unit

Characterized with the professionally engineered horizontal oscillating haul-off system, the machine is able to produce film without the issue of wrinkles. The air ring with high air volume facilitates the cooling efficiency.

FEATURES

Blown film machine with oscillating haul-off system, built under the supervision of professional European engineers
AC inverter motor design for better production and reliability
High torque gearbox with reinforced lubrication system to minimize machine down time
High mixing quality from the screw and barrel results in good homogeneity and high output
Horizontal oscillating haul-off unit allows minimum web tension that eliminates wrinkle problem
High volume air ring design for perfect cooling efficiency

Blown Film Machine With Oscillating Haul Off Unit

SPECIFICATIONS

Model	RH55T	RH65T	RH75T
Effective Film Width (mm)	1000	1200	1600
Extrusion Output (Max. kg / hr)	HDPE:120 / LDPE:120	HDPE:150 / LDPE:150	HDPE:220 / LDPE:220
Screw Dia. (mm)	ø55MM , L/D=30/1	ø65mm , L/D=30/1	ø75mm , L/D=30/1
Pinch Roller Width (mm)	1050	1250	1650
