Extrusion

From mono to 7-layer extrusion, Lung Meng’s blown film lines deliver high-output,
customized packaging films for diverse applications.

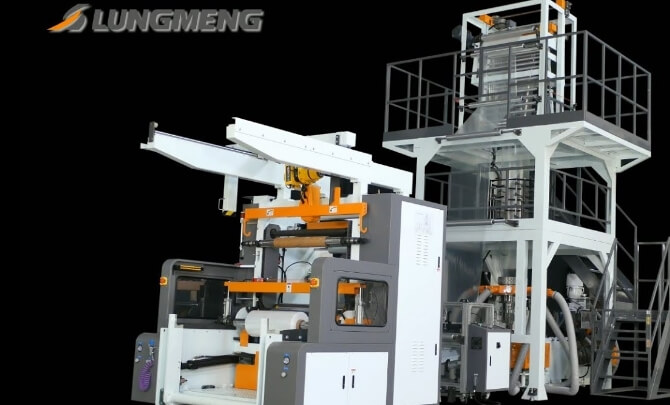

Mono Layer Blown Film Machine
Standard

The high performance main motor AC inverter drive of this series is designed for energy saving and minimum maintenance. Accuracy and reliability are enhanced by the nip inverter motor. With the Italian branded gear box that has a high torque and reinforced lubrication system, the machine’s down time is significantly reduced. High output and homogeneity are created through the outstanding screw & barrel.

FEATURES

High performance main motor AC inverter drive is designed for energy saving as well as minimum maintenance
Nip inverter motor is designed for accuracy and reliability
Italian gear box uses high torque and enforced lubrication system to minimum machine down time
High mixing quality from screw and barrel results in good homogeneity and high output

SPECIFICATIONS

Model	AH-45T	AH-55T	AH-65T	AH-75T
Effective Film Width (mm)	750	1000	1200	1600
Extrusion Output (Max. kg / hr)	60 (HDPE) / 60 (LDPE)	110 (HDPE) / 110 (LDPE)	150 (HDPE) / 150 (LDPE)	220 (HDPE) / 220 (LDPE)
Screw Dia. (mm)	ø45mm , L/D=28/1	ø55mm , L/D=28/1	ø65mm , L/D=28/1	ø75mm , L/D=30/1
Pinch Roller Width (mm)	850	1050	1250	1650
