                            Interleaved Draw Tape Bag on Roll Converting System

                            TAR Series













	This Interleaved Draw Tape Bag on Roll Converting System adopts a newly developed rotary sealing design. Even under high-speed operation, it consistently delivers excellent product quality. With its high-output capacity, the machine not only meets customers’ volume demands but also significantly reduces production time - achieving both quality and efficiency.


FEATURES




  •
		High speed integrated servo-driven system, suitable for poly draw, and conventional garbage bags on roll.

    •

  •
		Hot air sealing system for horizontal lip sealing features stable sealing.

    •

  •

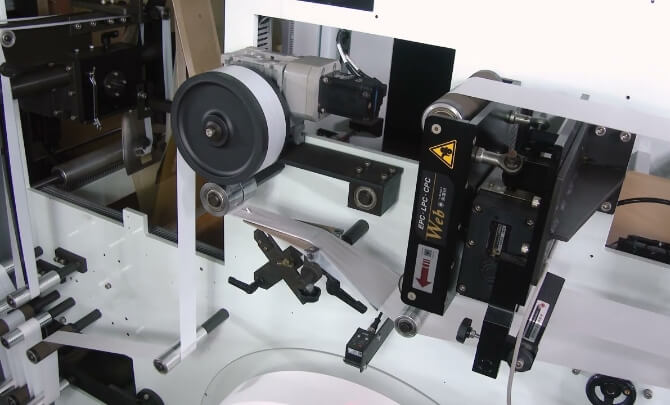

		Draw tape feeding system for auto inserting the tape, double unwind device for auto exchange draw tape.

    •

  •
		Equipped with PLC touch screen operator friendly control system.

    •

  •
		Servo driven bag making machine for complete synchronization of in-feed/out-feed, seal motion.

    •

  •
		In-line servo driven shuttle track sealing & perforating unit owns precisely dwell tine control for excellent effect of sealing & perforating.

    •

  •
		Optional: Labeling machine.

    •

  •
		Note: This machine does not have a print positioning (print-to-gap) setting function.

    •








Interleaved Draw Tape Bag on Roll Converting System TAR Series












SPECIFICATIONS













				Model


				TAR-900C


				TAR-1300C






				Single Thickness (mm)


				HDPE: 0.008-0.040 / LDPE: 0.020-0.060


				HDPE: 0.008-0.040 / LDPE: 0.020-0.060






				Draw Tape Bag Width (mm)


				400 - 1000


				400 - 1000






				Draw Tape Bag Length (mm)


				400 - 850


				400 - 1270






				Flat Bag Width (mm)


				100 - 800


				100 - 1200






				Flat Bag Length (mm)


				390 - 3140


				390 - 3140






				Machine Speed (m / min)


				Max. 200


				Max. 200






				Max. Output (pcs / min)


				400


				400






				Max. Dia. Of Product (mm)


				Ø 180 x W 275


				Ø 180 x W 275






				Draw Tape Width (mm)


				100


				100






				Draw Tape Thickness (mm)


				0.020-0.025


				0.020-0.025







+ Add to Inquiry

+ Add to Inquiry







>




* Specification subject to change without notice.





























                                        PLAY
                                        PLAY



                                    VIEW A VIDEO














                                        PLAY
                                        PLAY



                                    VIEW A VIDEO


















Get Your Personal Consultation


Searching for the right solution?
We are happy to consult with you which solutions best fit your needs.



				Contact Us












Discover more

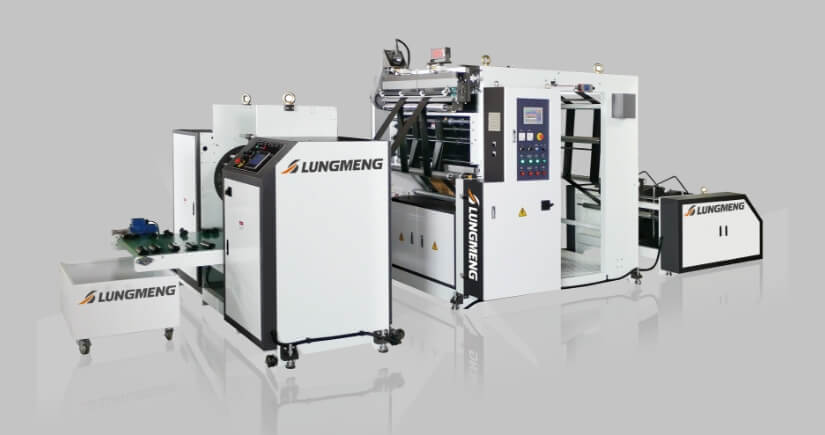

Servo-Driven Double-Track Rotary seal Garbage Bag Making Machine


                                    Servo-Driven Double-Track Rotary seal Garbage Bag Making Machine


	The newly developed concept of continuous turn around theorem and special design of free-loop film tensioning device allows sealing tightness, supporting even the thinnest gauge material. The machine is applicable for HDPE, recycled materials with the max. speed reaching 150 m/min. The fully automatic high speed for spindle roll winder is synchronized with the highly efficient auto labeling device. The surface winder is designed for one single flat and 2 star seal rolls of different roll diameters. The panel control micro-processor provides bag parameter settings and diagnostic information without production being stopped.



                                        Read More

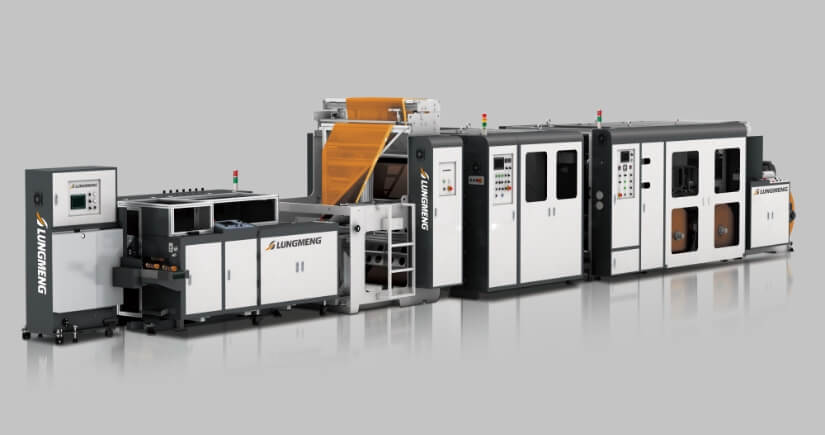

Shuttle Track Two Lanes Multiple-Style Bag on Roll Converting System
