Recycling

Designed for in-house scrap recycling,
our systems close the loop for sustainable, cost-efficient production.

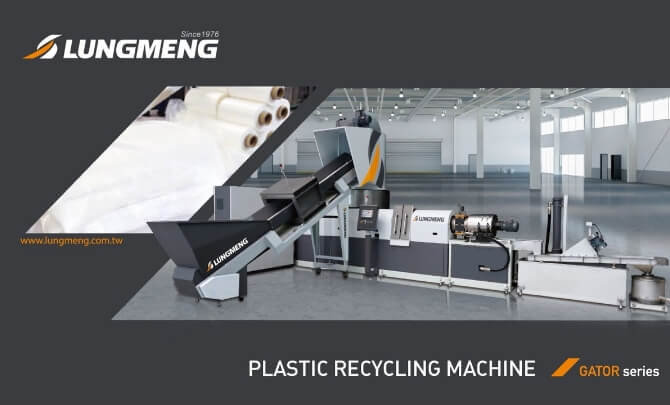

Gator Series

This WRSH series (as well as Gator Series) is applicable to HDPE, LDPE & PP, and is designed for high process stability and great outputs. The vent design on the barrel evaporates the volatile substances from the recycled material. It’s characterized by the hydraulic screen changer, pressure gauge and water chamber with a die face cutter that bring safety and simplicity to the operation. Efficiency is greatly enhanced with the low downtime and quick maintenance.

FEATURES

Designed for high material process stability and production.
Vent design on the barrel evaporates the volatiles from the recycled material.
Hydraulic screen change unit and pressure gauge for easy operation and safety.
Water chamber with die face cutter simplifies the process.
Easy operation, low downtime and quick maintenance.

SPECIFICATIONS

Model	Gator 85	Gator 100	Gator 120	Gator 160
Applicable Materials	HDPE, LDPE, PP	HDPE, LDPE, PP	HDPE, LDPE, PP	HDPE, LDPE, PP
Max. Output (kg / hr)	150-250	300-400	400-600	850-1000
Main Motor (hp)	75	125	175	350
Installed Power (kw)	148	220	290	530
Running Power (kw)	105	154	203	371
Pelletization	Pellet Bead	Pellet Bead	Pellet Bead	Pellet Bead
Control System	Touchscreen	Touchscreen	Touchscreen	Touchscreen
Cooling	Water Cooling	Water Cooling	Water Cooling	Water Cooling
