Recycling

Designed for in-house scrap recycling,
our systems close the loop for sustainable, cost-efficient production.

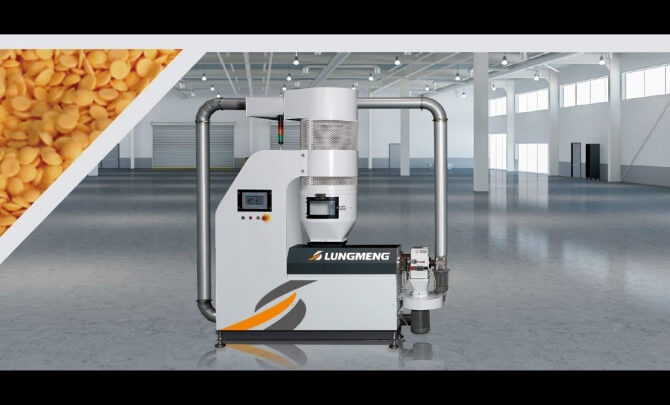

Piranha

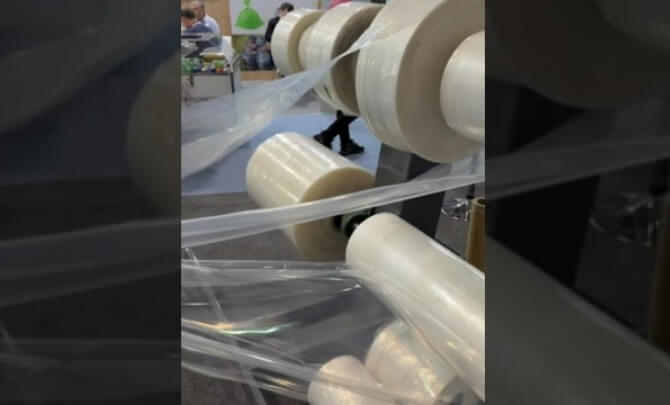

Piranha processes HDPE, LDPE, LLDPE & blends with auto pellet length control via motor load to keep pellet length consistent. The low temperature heat soak enables building perfect granules in real time. There’s a full and safe access to the dicer and blade changing. Peco is perfect for in-line trim recycling, accepting small rolls of film from beside the machine. Conforming to CE safety standards and equipped with the Siemens PLC & inverter, PECO is safe, intelligent and high efficiency.

FEATURES

Auto pellet length control via motor load to keep pellet length constant
Low temperature heat soak feature - 20 minutes to soak prior to starting
To build perfect granules in real time
Full access to dicer and safe access to blade changing
Air cooled pelletizer
Dual geometry low L/D ratio screws, manufactured from SACM-645, nitride hardened, ground and polished
Barrels are manufactured from SACM-645, honed finish and nitride hardened
Cold start protection
No material shutdown

SPECIFICATIONS

Model	Piranha-45	Piranha-60
Applicable Materials	HDPE, LDPE	HDPE, LDPE
Max. Output (kg / hr)	45	75-80
Main Motor (hp)	15	20
Installed Power (kw)	18.7	26
Running Power (kw)	9.5	18
Pelletization	Pellet Bead	Pellet Bead
Control System	Touchscreen / one-button start / Auto-shutdown	Touchscreen / one-button start / Auto-shutdown
Cooling	Air Cooling	Air Cooling
