                            Interleaved Draw Tape Bag on Roll Converting System

                            TA Series













	This line is equipped with high speed integrated servo-driven system and is suitable for draw-tape and conventional garbage bag on roll. The auto draw-tape feeding system and double unwinding system for quick draw tape roll changing. The double sealing device duplicates the production capacity for small bags, and the compact rotary interleaved winder, 2 in 1, is available for perforated bags on roll and interleaved bags on roll. With the user friendly PLC touch screen control system and optional label dispenser, it’s an easy task to produce a wide variety of bags on roll, including star sealed bags, wave top bags, and many more by changing the modular system.


FEATURES




  •
		High speed integrated servo-driven system, suitable for draw-tape and conventional garbage bag on roll.

    •

  •
		Auto draw-tape feeding system, double unwinding system for quick draw tape roll changing.

    •

  •
		Double sealing device duplicates production capacity for small bag.

    •

  •
		Compact rotary interleaved winder, 2 in 1 system, available for perforation bag on roll and interleaved bag on roll.

    •

  •
		User friendly PLC touch screen control system.

    •

  •
		Optional: Labeling machine, S-cut machine.

    •

  •
		Reliable versatile system to produce wide variety of bag on roll including star sealed bag, wave type bag, and  many more by changing modular system.

    •

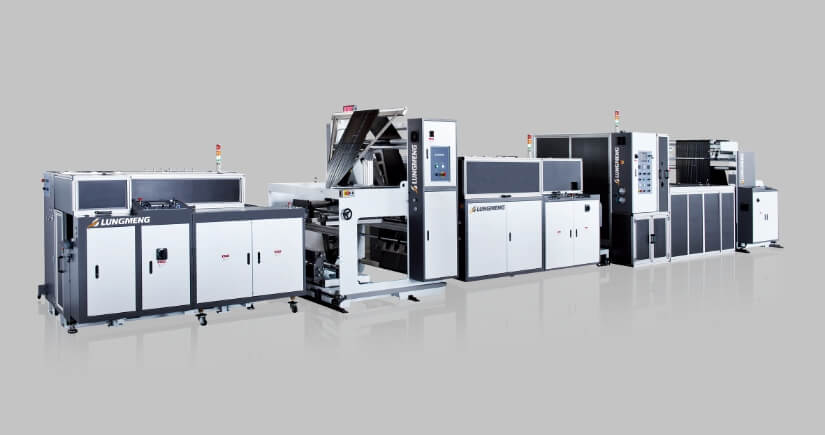

Interleaved Draw Tape Bag on Roll Converting System TA Series












SPECIFICATIONS













				Model


				TA-1000-IPD-XL-C


				TA-1250-IPD-XL-C






				Single Thickness (mm)


				HDPE: 0.008-0.040 / LDPE: 0.020-0.060


				HDPE: 0.008-0.040 / LDPE: 0.020-0.060






				Draw Tape Bag Width (mm)


				400 - 1000


				400 - 1000






				Draw Tape Bag Length (mm)


				400 - 900


				400 - 1200






				Flat Bag Width (mm)


				100 - 900


				100 - 900






				Flat Bag Length (mm)


				390 - 2000


				390 - 2000






				Machine Speed (m / min)


				Max. 160


				Max. 160






				Max. Output (pcs / min)


				320


				320






				Max. Dia. Of Product (mm)


				Ø 180 x W 275


				Ø 180 x W 275






				Draw Tape Width (mm)


				100


				100






				Draw Tape Thickness (mm)


				0.020 - 0.025


				0.020 - 0.025







+ Add to Inquiry

+ Add to Inquiry







>




* Specification subject to change without notice.
