Multi-Layer Blown Film Machines: The Ultimate Guide to High-Performance & Sustainable Packaging Films

As global packaging requirements continue to evolve, manufacturers are under increasing pressure to deliver films that combine strength, barrier protection, cost efficiency, and sustainability. Multi-layer blown film machines have emerged as a game-changing solution, enabling producers to create highly engineered films tailored to specific applications.

In this guide, you’ll discover:
✔ What multi-layer blown film machines are and how they work
✔ The differences between 3, 5, 7, and 9-layer configurations
✔ Real-world examples of advanced packaging solutions
✔ Key benefits for your production line

What Are Multi-Layer Blown Film Machines?

Multi-layer blown film machines produce plastic films by co-extruding multiple layers of different polymers into a single, high-performance structure. Each layer serves a unique purpose—enhancing properties such as mechanical strength, transparency, sealability, and barrier resistance.

Typically, the outer layers use premium resins to ensure excellent appearance and sealing performance, while the inner layers can incorporate recycled materials or functional additives to improve sustainability and reduce costs.

This technology is widely used across industries, including:

• Food packaging: for extended shelf life and protection against oxygen and moisture
• Agriculture: for durable mulch and greenhouse films
• Industrial packaging: for heavy-duty sacks, stretch films, and protective wraps

Key Layer Configurations

Three-layer machines

• ABA Configuration

  : Two extruders supply the outer layers, while one provides the middle layer. This setup balances cost and performance, making it ideal for products such as garbage bags, shopping bags, and cost-effective industrial films that incorporate recycled core layers.

  Typical Applications : Industrial packaging films, recycled-content garbage bags, and shopping bags.




  (3-Layer ABA Co-Extrusion Blown Film Machine)

• ABC Configuration

  : Features three independent extruders, allowing more diverse material selection. This configuration enhances strength and barrier properties, making it ideal for food and medical packaging films that require precise barrier control and enhanced toughness.

  Typical Applications: High-barrier food packaging, medical film packaging, and vacuum-sealed products.

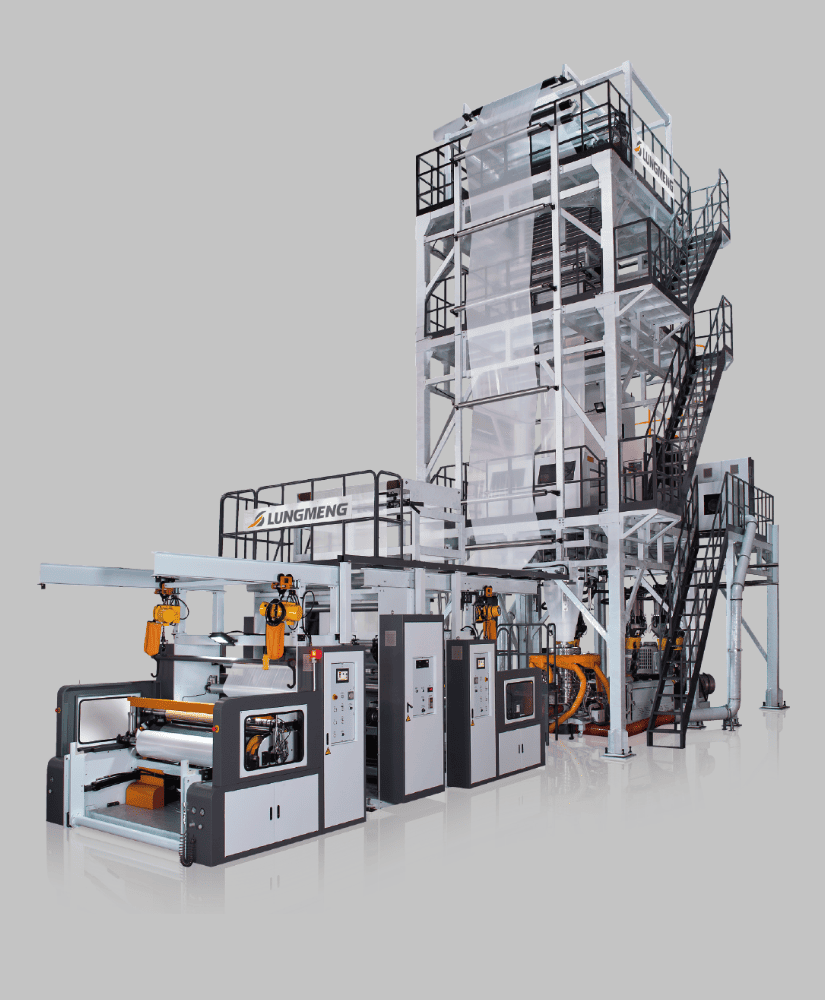

  (3-Layer Co-Extrusion Blown Film Machine)

Advanced Multi-Layer Systems

For industries requiring superior performance, machines with five, seven, or more layers offer enhanced flexibility in material composition. These systems optimize barrier properties, mechanical strength, and cost efficiency, catering to high-end food packaging and industrial applications.

• Five-Layer Blown Film Machines

  : These systems allow for greater material variety, combining high-barrier properties and improved film toughness, making them ideal for vacuum packaging and medical applications.They can integrate EVOH for oxygen barrier and nylon for puncture resistance, ensuring superior protection and durability.

  Typical Applications: Vacuum-sealed food packaging, medical-grade films, and oxygen-barrier pouches.

• Seven-Layer Blown Film Machines

  : Typically used in high-performance applications such as flexible food packaging and protective films, these machines enable precise layering of advanced polymers to achieve extended shelf life and durability.

  Typical Applications: Flexible food packaging, high-barrier protective films, and multilayer pouches requiring enhanced durability.

• Nine-Layer Blown Film Machines

  : At the cutting edge of film production, nine-layer systems provide exceptional customization, allowing for highly engineered films that meet the most demanding industry requirements, including pharmaceutical and specialty packaging.They deliver superior performance through multiple barrier and sealing layers.

  Typical Applications: Pharmaceutical packaging films, specialty multilayer films, and advanced protective laminates.

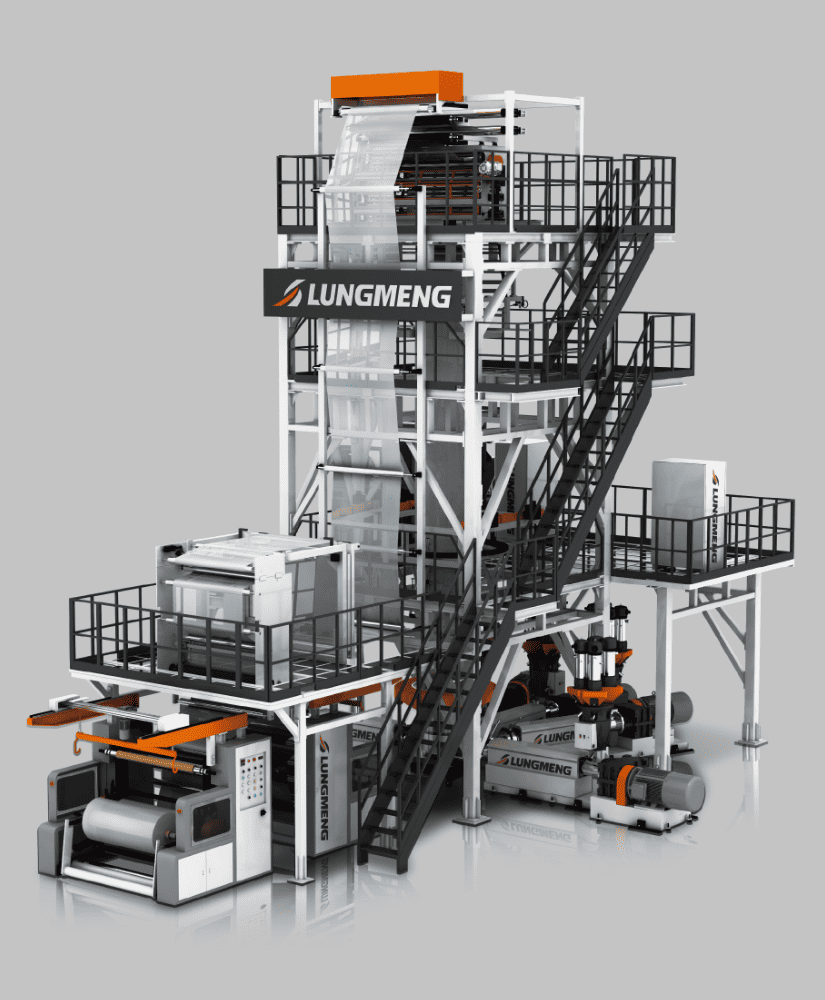

  (5-Layer Co-Extrusion Blown Film Machine)

How Multi-Layer Blown Film Machines Work

Here’s how these systems transform raw materials into sophisticated films:

1. Multi-Extruder Feeding System

   Each extruder melts a different polymer to form specific layers. Outer layers use high-quality materials, while inner layers may include recycled content or additives.

2. Co-Extrusion Die and Feedblock

   Polymers are combined into a single multi-layer structure through a die head, ensuring even distribution and strength.

3. Film Blowing and Inflation

   A tubular "bubble" is formed by air inflation, stretching the film to enhance mechanical properties.

4. Cooling and Solidification

   Cooling rings and rollers ensure uniform thickness and maintain film properties.

5. Collapsing, Winding, and Finishing

   The cooled film is flattened and wound into rolls for further processing like printing and laminating.

Real-World Applications

Case Study : Food Packaging Efficiency

A food company adopted a five-layer film system incorporating EVOH and nylon, enhancing oxygen and moisture barriers. This extended product shelf life, reduced waste, and improved customer satisfaction while maintaining cost efficiency.

Case Study : Sustainable Industrial Packaging

A manufacturer reduced material costs by 20% using an ABA machine, incorporating recycled content in the core while keeping high-quality outer layers. This boosted sustainability and cost-effectiveness.

Advantages of Multi-Layer Blown Film Machine

• Enhanced Barrier Protection

  Protects against oxygen, moisture, and contaminants to maintain product quality.

• Superior Mechanical Strength

  Stretching during film blowing aligns polymer chains for greater toughness.

• Cost Efficiency & Sustainability

  Strategic layering of recycled and virgin materials lowers material costs and supports environmental goals.

• Customizable Film Structures

  Layer composition can be precisely adjusted to match unique application requirements.

• Consistent High-Quality Output

  Automated controls ensure uniform film thickness and reliable production performance.

Frequently Asked Questions

Q: What is the main difference between ABA and ABC configurations?

ABA uses two extruders for the outer layers and one for the core, optimizing costs. ABC has three extruders for full material flexibility, ideal for more demanding applications.

Q: How do multi-layer films contribute to sustainability?

Recycled materials can be incorporated into core layers, reducing virgin resin usage and minimizing waste.

Q: Which industries benefit most from five-layer machines?

Food packaging, medical packaging, and vacuum-sealed products often rely on five-layer films for enhanced protection.
