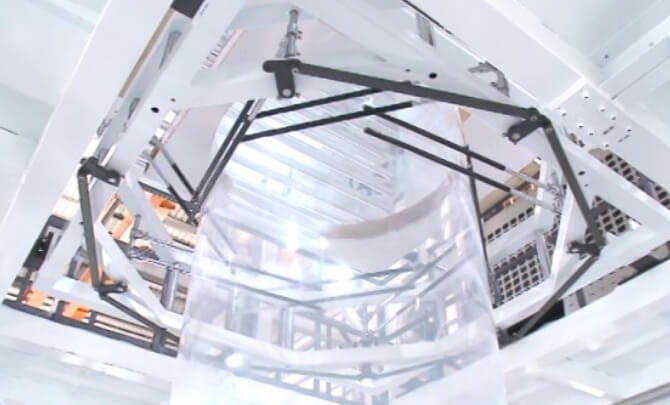

3 Layer (ABC) Blown Film Machine
RH Series

This 3-layer co-extrusion blown film machine operates mainly with PE materials with the layer composition ABC. The layer configuration of materials is 25/50/25.

FEATURES

Suitable Material: PE group
Layer Distribution: A/B/C
European made Screw & Barrel for high compression results in good homogeneity and high output
Special designed die improves uniform film thickness and product quality
High performance main motor with AC invertor drive is designed for energy saving as well as minimum maintenance
Gear box uses high torque and enforced lubrication system to minimize machine down time

3 Layer (ABC) Blown Film Machine RH Series

SPECIFICATIONS

Model	RH45/55/45TT	RH55/65/55TT	RH55/75/55TT	RH55/75/55TT	RH65/75/65TT	RH65/90/65TT
Max. Film Width(mm)	1200	1600	1700	2000	2200	2400
Extrusion Output (Max. kg / hr)	200	280	360	360	460	550
Screw Dia. (mm)	Extruder A: ø45 , L/D=30/1 Extruder B: ø55 , L/D=30/1 Extruder C: ø45 , L/D=30/1	Extruder A: ø55 , L/D=30/1 Extruder B: ø65 , L/D=30/1 Extruder C: ø55 , L/D=30/1	Extruder A: ø55 , L/D=30/1 Extruder B: ø75 , L/D=30/1 Extruder C: ø55 , L/D=30/1	Extruder A: ø55 , L/D=30/1 Extruder B: ø75 , L/D=30/1 Extruder C: ø55 , L/D=30/1	Extruder A: ø65 , L/D=30/1 Extruder B: ø75 , L/D=30/1 Extruder C: ø65 , L/D=30/1	Extruder A: ø65 , L/D=30/1 Extruder B: ø90 , L/D=30/1 Extruder C: ø65 , L/D=30/1
Machine Height(M)	8	12	12	13	13	13
