Extrusion

From mono to 7-layer extrusion, Lung Meng’s blown film lines deliver high-output,
customized packaging films for diverse applications.

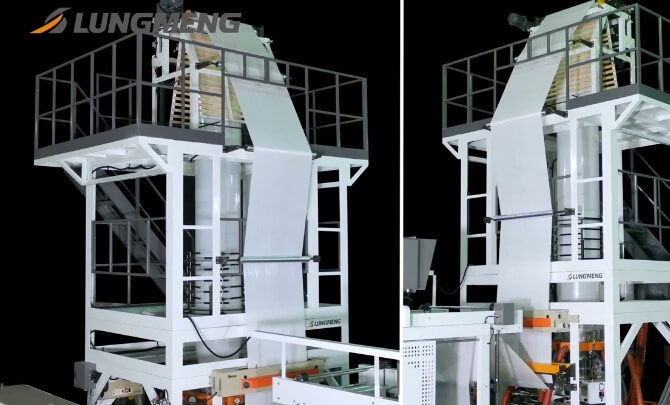

3 Layer (ABA) Blown Film Machine
LE Series

This series LE ABA blown film machine is capable of producing high standard 3-layer film with minimum power consumption and labor costs through the use of the high performance AC main motor & inverter. The PID temperature controller and easy-to-use HMI remarkably raise the production efficiency. This line can be equipped with optional equipment, including rotary device, bi-metallic screws, columnar screen changers, gravimetric blending systems, auto feeding loader, surface treater, gusset device, double rewinders, chillers and chilling boxes.

FEATURES

LE series is supplied with high performance AC main motor & inverter, which is designed for energy saving as well as minimum maintenance.
Minimum power consumption and labor cost.
Improved Die & Air Ring design, ensures higher film quality and easier production control.
Equipped with PID temperature controller and user friendly HMI control system.

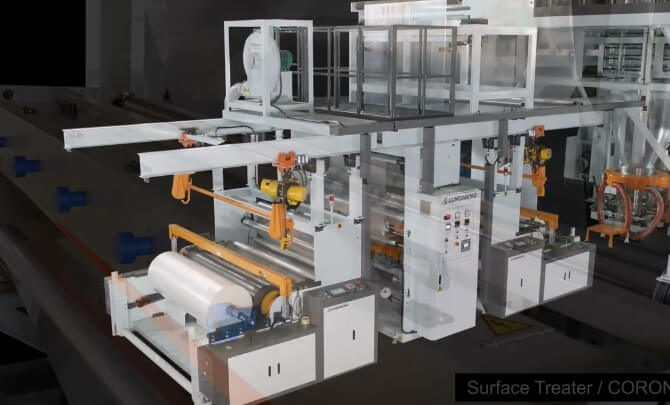

Option: Rotary Device, Bi-metallic Screw, Columnar Screen Changer, Gravimetric Blending System, Auto Feeding Loader, Surface Treater, Gusset Device, Double Rewinders, Chiller and Chilling Box.

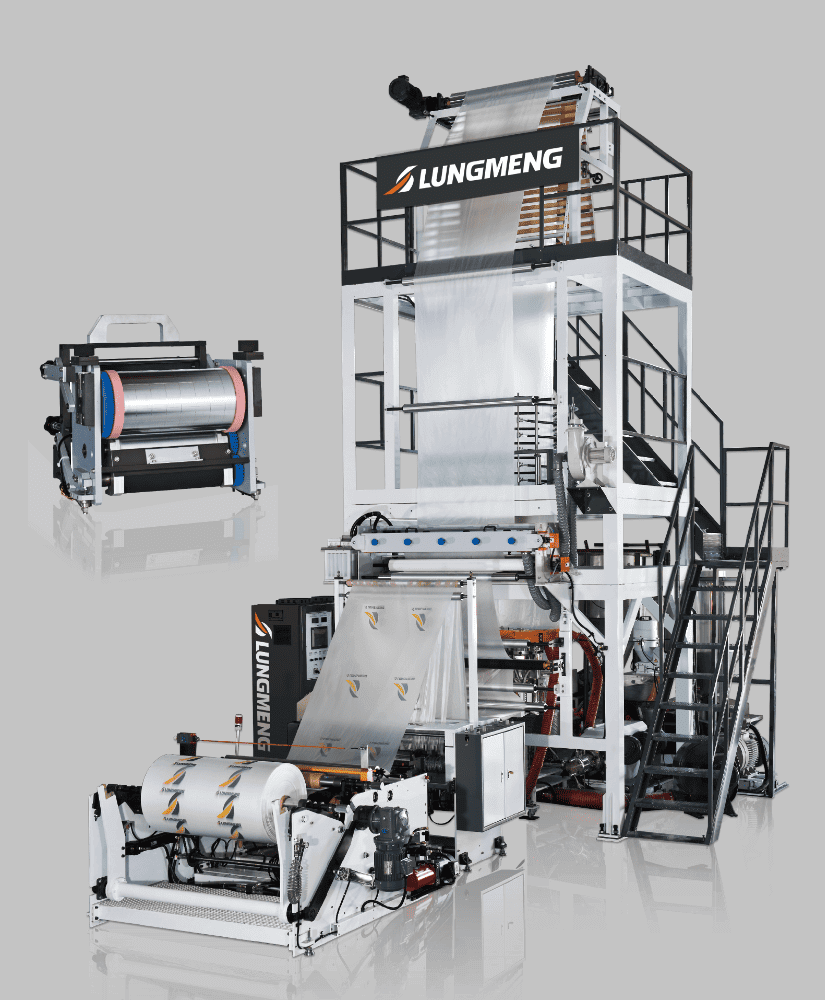

3 Layer (ABA) Blown Film Machine LE Series

SPECIFICATIONS

Model	ABA-850-LD/HD	ABA-1050-LD/HD	ABA-1250-LD/HD	ABA-1650-LD/HD
Effective Film Width (mm)	800	1000	1200	1600
Extrusion Output (Max. kg / hr)	110	140	210	210
Screw Dia. (mm)	40/45	45/55	55/65	55/65
Pinch Roller Width (mm)	850	1050	1250	1650
