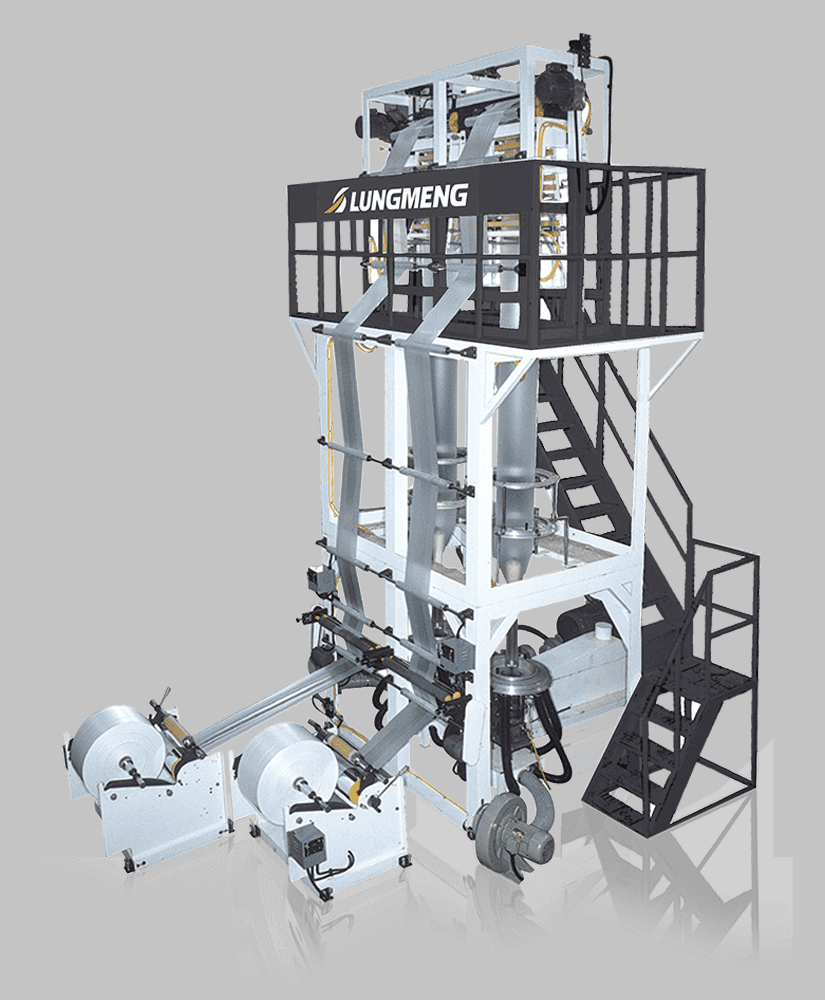

                                High Speed Twin Die Blown Film Machine



    6.














                            High Speed Twin Die Blown Film Machine















	Designed for production of narrow and thin film, this line of high speed twin die blown film machine is equipped with the premium main AC motor with an inverter that is designed specifically for minimum energy consumption, accuracy and efficiency. The top notch performance of the screw & barrel produces more than satisfying output.


FEATURES




  •
		High performance main AC motor with inverter designed for saving energy and minimum maintenance

    •

  •
		Nip inverter designed for accuracy and reliability

    •

  •
		High torque gear box with enforced lubrication system to minimize machine down time

    •

  •
		High quality mixing in screw and barrel delivers excellent homogeneity and high output

    •

  •
		Designed for producing narrow and thin film

    •








High Speed Twin Die Blown Film Machine












SPECIFICATIONS













				Model


				AH-45TD


				AH-55TD


				AH-65TD






				Effective Film Width (mm)


				400


				500


				600






				Extrusion Output (Max. kg / hr)


				LDPE:60 / HDPE:60


				LDPE:90 / HDPE:90


				LDPE:150 / HDPE:150






				Screw Dia. (mm)


				45mm,28/1


				55mm,28/1


				65mm,28/1






				Pinch Roller Width (mm)


				450


				550


				650







+ Add to Inquiry

+ Add to Inquiry

+ Add to Inquiry







>




* Specification subject to change without notice.
